| Display Type |
Backlit LCD |
| Data Hold |
Yes |
| Instrument Counts |
6,000/19,999 |
| Includes |

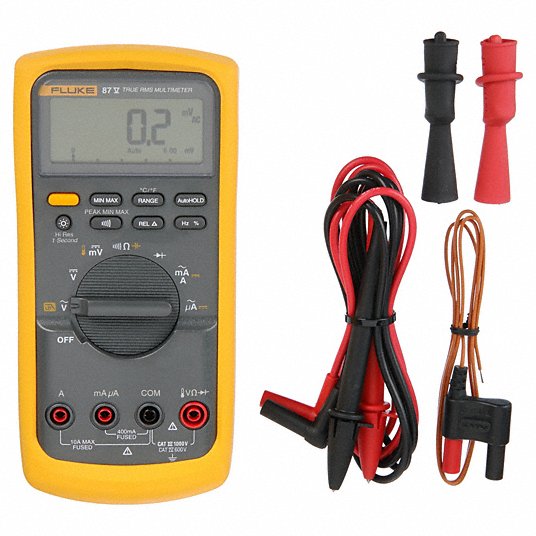

80BK Temperature Probe, 9V Battery (Installed), AC175 Alligator Clips, Holster with Tilt-Leg, Test Lead Storage, TL75 Test Leads (TL175 Eur) |
| Standards |
CSA, EN61010-1, TUV, UL, VDE |
| Auto Power Off |
Yes |
| Data Logging |
Yes |
| Audible Continuity |
Yes |
| Diode Test |
Yes |
| Max. DC Amps |
10 |
| Capacitance Range |
10 pF to 9999 uF |
| Multimeter Style |
Full Size - Advanced Features |
| Temp. Range |
-328 Degrees to 1994 Degrees F |
| Basic DC Accuracy |
+/-0.05% of Reading + 1 Digit |
| Series |
FLUKE (R) Fluke-87-V |
| Display |
Backlit LCD |
| Max. AC Amps |
10 |
| Auto Ranging |
Yes |
| Peak Hold |
Yes |
| Calibration Certificate Included |
No |
| Duty Cycle |
Yes |
| Instrument Safety Rating |
CAT III 1000V, CAT IV 600V |
| AC Response |
TRMS |
| Instrument Frequency Counter Range |
0.5 Hz to 200 kHz |
| Max. Ohms |
50 megohm |
| Intrinsically Safe |
No |
| Basic AC Current Accuracy |
+/-(1.0% + 2) |
| Battery Voltage |
9V |
| Bluetooth Compatible |
No |
| Parameters Measured |
AC Current, AC Voltage, Capacitance, Conductance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K) |
| Waterproof |
No |
| Minimum AC Voltage Measurement |
0 V |
| Battery Chemistry |
Alkaline |
| Software Included |
No |
| Maximum AC Current Measurement |
10 A |
| Maximum AC Voltage Measurement |
1,000 V |
| Thermal Imaging |
No |
| Basic DC Current Accuracy |
+/-(0.2% + 2) |
| Dustproof |
No |
| Maximum Resistance Measurement |
50 megaohm |
| Battery Access |
Yes |
| Minimum Frequency Measurement |
0.5 Hz |
| Weight |
624 g |
| Capacitance Measurement Resolution |
0.01 nF |
| Resistance Measurement Accuracy |
+/-0.2% |
| Min-Max-Avg Button Included |
Yes |
| Minimum DC Voltage Measurement |
0 V |
| AC Current Measurement Resolution |
0.1 uA |
| Basic AC Voltage Accuracy |
+/-(0.7% + 2) |
| Frequency Measurement Resolution |
0.01 Hz |
| DC Voltage Measurement Resolution |
0.01 V |
| Minimum DC Current Measurement |
0 mA |
| Minimum Storage Temperature |
-40 Degrees F |
| Batteries Included |
Yes |
| Removable Screen |
No |
| Minimum Capacitance Measurement |
10 pF |
| Fuse Access |
Yes |
| Computer Interface Connection Type |
None |
| Maximum Storage Temperature |
140 Degrees F |
| Current Leakage Testing |
No |
| Resistance Measurement Resolution |
0.1 ohm |
| Minimum AC Current Measurement |
0 mA |
| Maximum Temperature Measurement |
1,994 Degrees F |
| DC Current Measurement Resolution |
0.01 uA |
| AC Voltage Measurement Resolution |
0.1 V |
| Maximum DC Current Measurement |
10 A |
| Maximum Frequency Measurement |
200 kHz |
| Bar Graph Included |
Yes |
| Minimum Operating Temperature |
-4 Degrees F |
| Frequency Measurement Accuracy |
+/-(0.005% + 1) |
| Minimum/Maximum Memory |
Yes |
| AC Response Calculation |
TRMS |
| Maximum DC Voltage Measurement |
1,000 V |
| Basic DC Voltage Accuracy |
+/-0.05% + 1 Digit |
| Capacitance Measurement Accuracy |
+/-(1% + 2) |
| Minimum Temperature Measurement |
-328 Degrees F |
| Maximum Capacitance Measurement |
9,999 uF |
