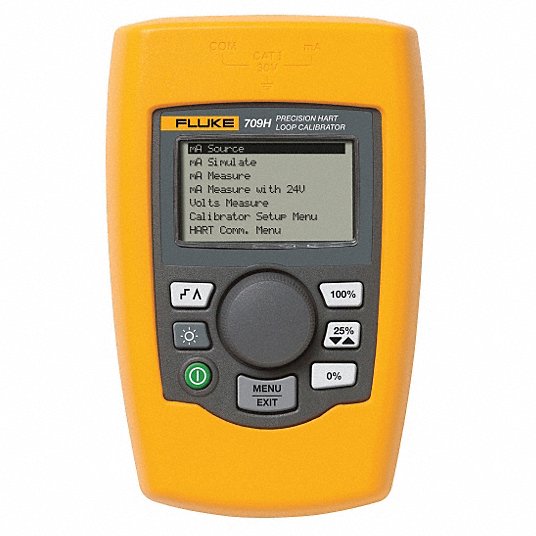

Loop Calibrator, Source Current 0 to 20mA DC, Current Measurement Range 0 to 24mA DC, Current Accuracy 0.01 Percent +/-2 Counts, Voltage Measurement Range 0 to 30V DC, Voltage Accuracy 0.01 Percent +/-2 Counts, Loop Supply Voltage 24 V DC, Max. Loop Current 20mA DC, Display LCD, Standards EN61326, Calibration Certificate NIST with Data, Powered By (6)AAA Batteries
| Includes |
(2) 75X-8014 Stackable Leads, (2) TP220-4201 Test Probes, 754-8016 Alligator Clips, AC280-5001 SureGrip Hook Clips, Carrying Case |
| Display |
LCD |
| Standards |
EN61326 |
| Loop Supply Voltage |
24 V DC |
| Powered By |
(6)AAA Batteries |
| Current Measurement Range |
0 to 24mA DC |
| Source Current |
0 to 20mA DC |
| Calibration Certificate |
NIST with Data |
| Current Accuracy |
0.01% +/-2 Counts |
| Source/Simulate |
4 to 20 mA |
| Voltage Measurement Range |
0 to 30V DC |
| Max. Loop Current |
20mA DC |
| Voltage Accuracy |
0.01% +/-2 Counts |
| Product Type |
Loop Calibrator |
| Communication Protocol |
HART |
| Calibration Certificate Type |
NIST |
| Digital Display Screen Type |
LCD |
| Includes Batteries |
Batteries Included |
| Source Voltage - Maximum |
30 V DC |
| Current Measurement - Minimum |
0 mA |
| Loop Current - Maximum |
20 mA |
| Voltage Measurement - Maximum |
30 V DC |
| Voltage Measurement - Minimum |
0 V DC |
| Source Voltage - Minimum |
0 V DC |
| Battery Chemistry |
Alkaline |
| Source Current - Minimum |
0 mA |
| Parameters Measured |
DC Current, DC Voltage |
| Current Measurement - Maximum |
24 mA |
| Source Current - Maximum |
20 mA |
| Number of Batteries Required |
6 |
