Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 1000V, CAT IV 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 2,500 A, Maximum AC Voltage Measurement 1,000 V, Maximum DC Current Measurement 999.9 A, Maximum DC Voltage Measurement 1,000 V, Current Leakage Testing No, IP Rating IP30, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No
| Digital/Analog |
Digital |
| Max. AC Amps |
1,000 |
| Clamp Meter Jaw Style |
Clamp On |
| Max. DC Volts |
1,000 V |
| Max. Ohms |
60,000 |
| Jaw Capacity |
1.6 in (41 mm) |
| Safety Rating |
CAT III 1000V, CAT IV 600V |
| Display |
LCD |
| Jaw Opening |
1.6 in |
| Max. DC Amps |
1,000 |
| Max. AC Volts |
1,000 V |
| Calibration Frequency |
55 to 60 Hz |
| AC Response |
800 Hz |
| Special Features |

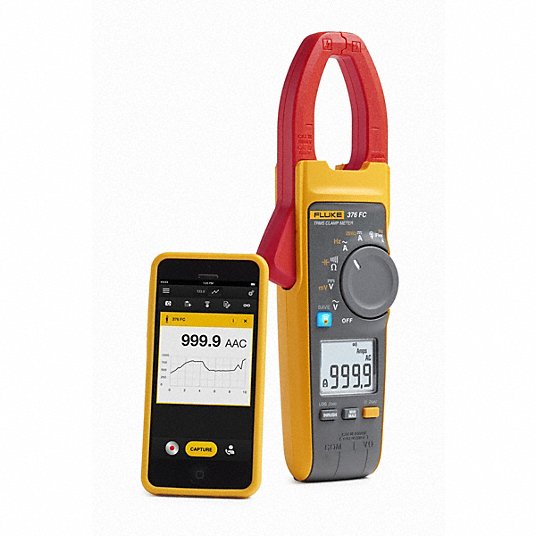

Bluetooth |
| Diode Test |
No |
| Standards |
CE, CSA |
| Non-Contact Voltage Detector |
No |
| Auto Power Off |
Yes |
| Midscale Resistance |
30 ohm |
| Capacitance |
1,000 uF |
| Counts |
6,000 |
| Peak Hold |
Yes |
| Audible Continuity |
Yes |
| Operating Temp. |
50 Degrees to 122 Degrees F |
| Auto Ranging |
Yes |
| Calibration Certificate |
Not Included |
| AC Current Accuracy |
+/-2.0% + 5 Digits |
| Battery Type |
AA |
| Inrush |
Yes |
| Memory |
Max/Min/Avg/Logging |
| Data Hold |
Yes |
| Includes |

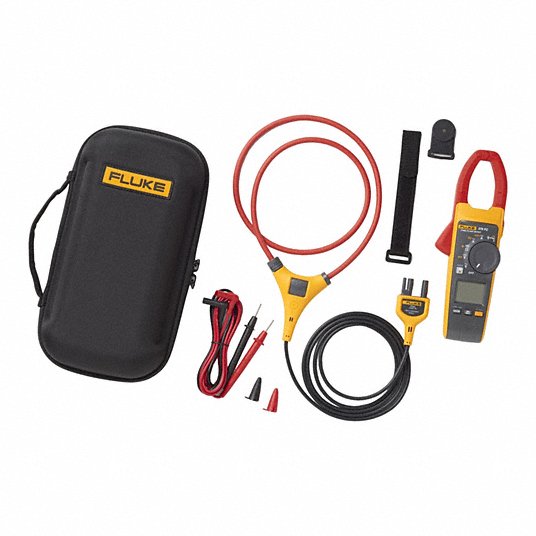

Carrying Case, Flexible Probe, Magnetic Strap |
| Thermometer Type |
Type K Thermocouple |
| Data Logging |
Yes |
| Shop By |
Hot Buys |
| Display Type |
LCD |
| Jaw Style |
Clamp-Jaw |
| Capacitance Measurement Resolution |
0.1 uF |
| Waterproof |
No |
| AC Response Calculation |
TRMS |
| Basic DC Current Accuracy |
2% +/- 5 digits |
| Batteries Included |
Yes |
| Calibration Certificate Included |
No |
| Inrush Current Measurable |
Yes |
| Basic DC Voltage Accuracy |
1% +/-5 digits |
| AC Current Measurement Resolution |
0.1 A |
| Thermal Imaging |
No |
| Battery Access |
Yes |
| Maximum DC Voltage Measurement |
1,000 V |
| Parameters Measured |
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K) |
| Maximum Capacitance Measurement |
1,000 uF |
| Bluetooth Compatible |
Yes |
| Maximum Resistance Measurement |
60,000 ohm |
| AC Voltage Measurement Resolution |
0.1 V |
| Maximum AC Voltage Measurement |
1,000 V |
| Dustproof |
No |
| Frequency Measurement Resolution |
0.1 Hz |
| DC Current Measurement Resolution |
0.1 A |
| DC Voltage Measurement Resolution |
0.1 mV |
| IP Rating |
IP30 |
| Frequency Measurement Accuracy |
0.5% +/-5 digits |
| Resistance Measurement Accuracy |
1% +/-5 digits |
| Basic AC Current Accuracy |
2% +/-5 digits (10 Hz to 100 Hz)2.5% +/-5 digits (100-500 Hz) |
| Maximum AC Current Measurement |
2,500 A |
| Maximum DC Current Measurement |
999.9 A |
| Capacitance Measurement Accuracy |
1% +/-4 digits |
| Basic AC Voltage Accuracy |
1% +/-5 digits (20 Hz to 500 Hz) |
| Intrinsically Safe |
No |
| Current Leakage Testing |
No |
| Resistance Measurement Resolution |
0.1 ohm |
| Maximum Storage Temperature |
140 Degrees F |
| Instrument Counts |
6,000 |
| Removable Screen |
No |
| Minimum Operating Temperature |
14 Degrees F |
