Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, CAT IV 300V, AC Response Calculation TRMS, Maximum AC Current Measurement 400 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 400 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, IP Rating IP30, Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K), Intrinsically Safe No, Dustproof No, Waterproof No
| Digital/Analog |
Digital |
| Max. AC Amps |
400 |
| Clamp Meter Jaw Style |
Clamp On |
| Max. DC Volts |
600 V |
| Max. Ohms |
40,000 |
| Jaw Capacity |
1.1 in (28 mm) |
| Temp. Range |
14 Degrees to 752 Degrees F |
| Safety Rating |
CAT III 600V, CAT IV 300V |
| Display |
Backlit LCD |
| Jaw Opening |
1.1 in |
| Max. DC Amps |
400 |
| Max. AC Volts |
600 V |
| Audible Continuity |
Yes |
| Operating Temp. |
14 Degrees to 122 Degrees F |
| Memory |
Max/Min |
| Peak Hold |
Yes |
| Frequency Counter |
500 Hz |
| Auto Ranging |
Yes |
| AC Response |
TRMS |
| Auto Power Off |
Yes |
| AC Current Accuracy |
+/-2.0% + 5 Digits |
| Counts |
6,000 |
| Data Hold |
Yes |
| Thermometer Type |
Type K Thermocouple |
| Special Features |
Versatile Tool Performs Most Front-Line Measurement Tasks |
| Battery Type |
AAA |
| Bar Graph |
No |
| Diode Test |
No |
| Capacitance |
1,000 uF |

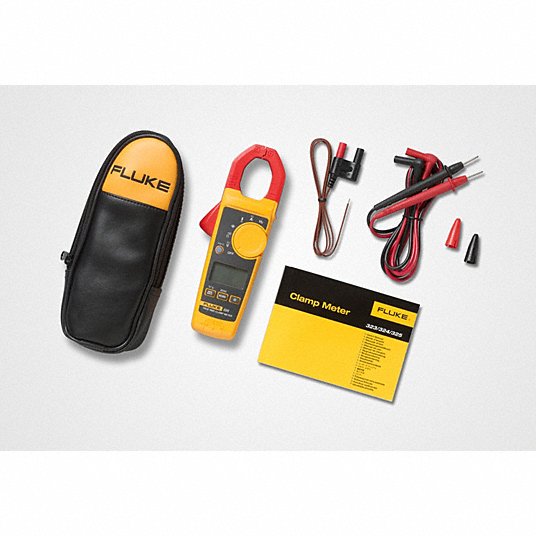

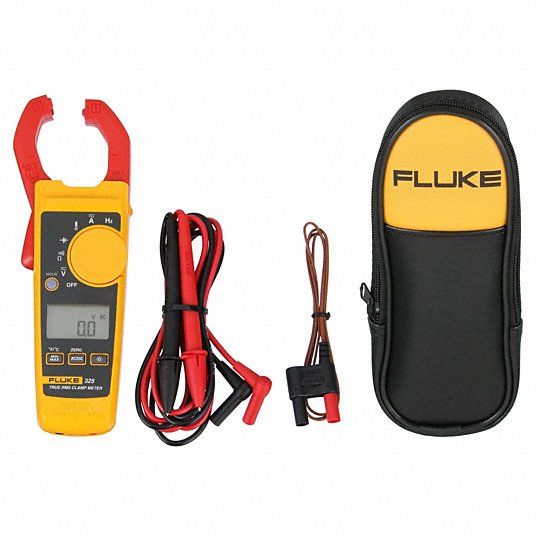

| Includes |
Display Container, Manual, Soft Case, Test Leads |
| Data Logging |
Yes |
| Thermal Imaging |
No |
| AC Response Calculation |
TRMS |
| Dustproof |
No |
| Maximum DC Current Measurement |
400 A |
| Basic DC Current Accuracy |
2% +/- 5 digits |
| Maximum AC Voltage Measurement |
600 V |
| IP Rating |
IP30 |
| Maximum DC Voltage Measurement |
600 V |
| Batteries Included |
Yes |
| Instrument Counts |
6,000 |
| Removable Screen |
No |
| Maximum Capacitance Measurement |
1,000 uF |
| Basic AC Current Accuracy |
2% +/- 5 digits (45 Hz to 65 Hz); 2.5% +/- 5 digits (65 Hz to 400 Hz) |
| Resistance Measurement Accuracy |
1.0% +/- 5 digits |
| Basic DC Voltage Accuracy |
1.0% +/- 5 digits |
| Bar Graph Included |
No |
| Maximum Resistance Measurement |
40,000 ohm |
| Jaw Style |
Clamp-Jaw |
| Capacitance Measurement Accuracy |
0 to 100.0 µF / 100 µF to 1000 µF |
| Maximum Operating Temperature |
122 Degrees F |
| Minimum Operating Temperature |
14 Degrees F |
| Display Type |
Backlit LCD |
| Waterproof |
No |
| Intrinsically Safe |
No |
| Basic AC Voltage Accuracy |
1.5% +/- 5 digits |
| Frequency Measurement Accuracy |
5.0 Hz to 500.0 Hz |
| Current Leakage Testing |
No |
| Bluetooth Compatible |
No |
| Maximum AC Current Measurement |
400 A |
| Calibration Certificate Included |
No |
| Parameters Measured |
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature (K) |
| Battery Access |
Yes |
