| Display Type |
Backlit LCD |
| Data Hold |
Yes |
| Instrument Counts |
6,000 |
| Includes |

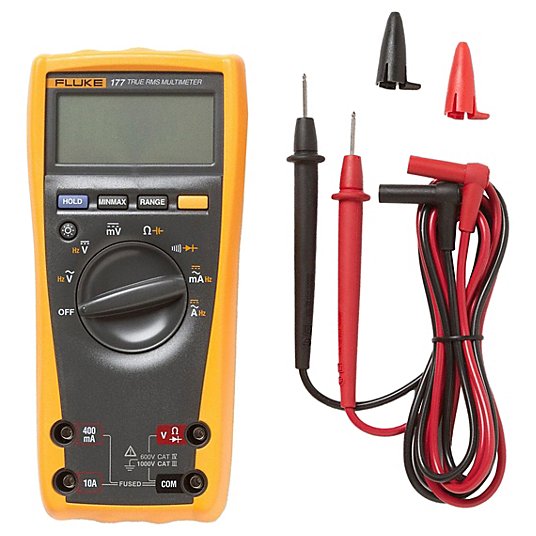

(1 Pair) Test Leads, 9V Battery (Installed), Quick Reference Guide |
| Standards |
CSA, EN61010-1, TUV, UL, VDE |
| Auto Power Off |
Yes |
| Data Logging |
Yes |
| Audible Continuity |
Yes |
| Diode Test |
Yes |
| Instrument Frequency Counter Range |
0.01 Hz to 100 kHz |
| Auto Ranging |
Yes |
| Temp. Range |
14 Degrees to 122 Degrees F |
| Display |
Backlit LCD |
| Max. AC Amps |
10 |
| AC Response |
TRMS |
| Basic DC Accuracy |
+/-0.09% of Reading +2 Digits |
| Series |

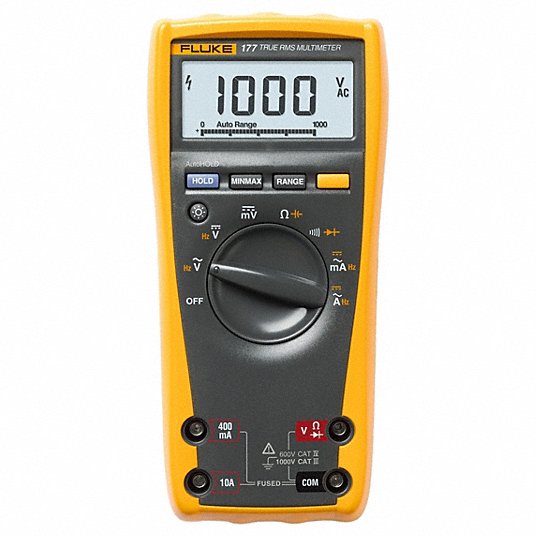

FLUKE (R) Fluke-177 |
| Max. DC Amps |
10 |
| Instrument Safety Rating |
CAT III 1000V, CAT IV 600V |
| Multimeter Style |
Full Size - General Features |
| Calibration Certificate Included |
No |
| Max. Ohms |
50 megohm |
| Capacitance Range |
1 nF to 10,000 uF |
| Intrinsically Safe |
No |
| Battery Access |
Yes |
| Minimum Capacitance Measurement |
1 nF |
| Maximum Operating Temperature |
122 Degrees F |
| Maximum Frequency Measurement |
100 kHz |
| Frequency Measurement Resolution |
0.01 Hz |
| Fuse Access |
Yes |
| Minimum DC Current Measurement |
0 A |
| Maximum AC Voltage Measurement |
1,000 V |
| Basic AC Current Accuracy |
+/-(1.5% + 3) |
| Capacitance Measurement Accuracy |
+/-(1.2% + 2) |
| Basic DC Voltage Accuracy |
+/-0.09% + 2 Digits |
| Maximum Resistance Measurement |
50 megaohm |
| Dustproof |
No |
| Capacitance Measurement Resolution |
1 nF |
| Computer Interface Connection Type |
None |
| Minimum Operating Temperature |
14 Degrees F |
| Maximum DC Current Measurement |
10 A |
| Parameters Measured |
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance |
| Minimum Storage Temperature |
-22 Degrees F |
| Maximum Capacitance Measurement |
10,000 uF |
| Maximum AC Current Measurement |
10 A |
| Resistance Measurement Accuracy |
+/-0.9% |
| Frequency Measurement Accuracy |
+/-(0.1% + 1) |
| Minimum AC Voltage Measurement |
0 V |
| Basic DC Current Accuracy |
+/-(1.0% + 3) |
| Software Included |
No |
| Bar Graph Included |
Yes |
| Minimum AC Current Measurement |
0 A |
| Maximum DC Voltage Measurement |
1,000 V |
| Minimum DC Voltage Measurement |
0 V |
| Battery Chemistry |
Alkaline |
| Minimum Temperature Measurement |
14 Degrees F |
| Minimum Frequency Measurement |
0.01 Hz |
| Waterproof |
No |
| Battery Voltage |
9V |
| Basic AC Voltage Accuracy |
+/-(1.0% + 3) |
| Thermal Imaging |
No |
| Batteries Included |
Yes |
| Maximum Temperature Measurement |
122 Degrees F |
| Maximum Storage Temperature |
140 Degrees F |
| Current Leakage Testing |
No |
| Min-Max-Avg Button Included |
Yes |
| Minimum/Maximum Memory |
Yes |
| Weight |
420 g |
| Removable Screen |
No |
| Bluetooth Compatible |
No |
| AC Response Calculation |
TRMS |
