| Item |

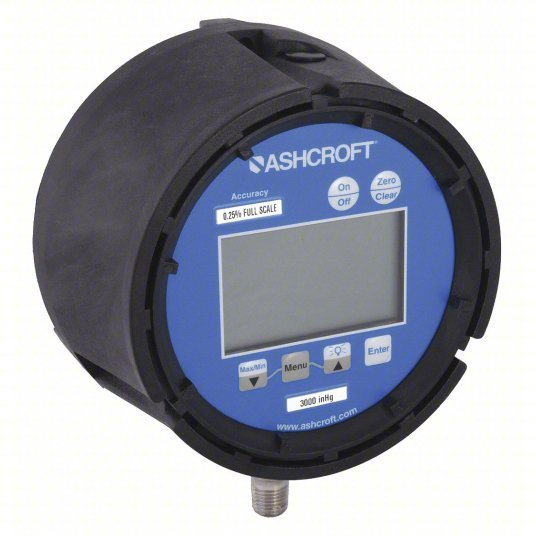

Digital Test Pressure Gauge |
| Connection Location |
Bottom |
| Includes |

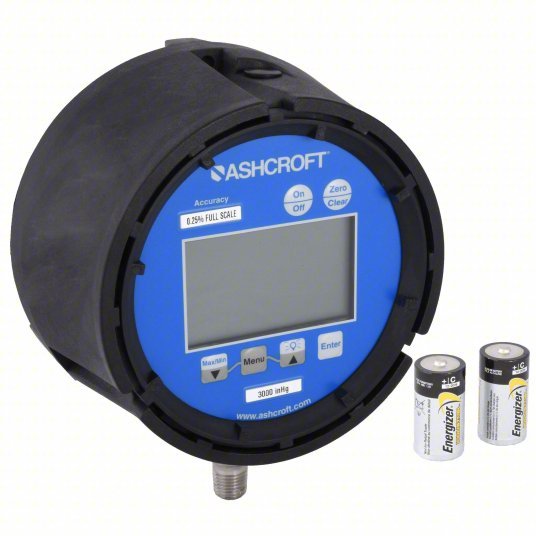

Battery and Instructions |
| Range |
0 to 300 psi |
| Digital Pressure and Vacuum Gauge Type |
Digital Pressure Gauge |
| Accuracy |
+/-0.25% |
| Application |
Pneumatics, Hydraulics |
| Gauge Primary Range Values |
0 to 300 |
| Gauge Primary Range Units |
psi |
| Gauge Connection Type |
MNPT |
| Basic Gauge Case Material |
Plastic |
| Case Color |
Black |
| Resolution |
Dependent on Display Units Selected |
| Calibration Certificate |
No |
| Agency Compliance |
CE, CSA, FM |
| Gauge Operating Temp. Range |
-14 Degrees to 140 Degrees F |
| Digital Gauge Display Units |
bar, ft wc, in Hg, kg/sq cm, kPa, mbar, MPa, psi |
| Gauge Connection Location |
Bottom |
| Powered By |
(2) C Batteries |
| Socket Material |
316 Stainless Steel |
| Digital Gauge Accuracy |
+/-0.25% Full Scale |
| Basic Gauge Wetted Parts |
Stainless Steel |
| Series |
2074 |
| Peak Hold |
No |
| Display Units |
bar, ft wc, in Hg, kg/sq cm, kPa, mBar, Mpa, psi |
| Case Material |
Plastic |
| Display |
LCD |
| Number of Display Digits |
5 |
| Pressure Range |
0 to 300 psi |
| Gauge Case Material |
Thermoplastic |
| Standards |
CSA, FM |
| Process Connection |
1/4 in NPT Male |
| Auto-Shutoff |
Yes |
| Includes Mounting Hardware |
No |
| Case Shape |
Round |
| Auto-Shutoff Time |
2 min, 5 min, 15 min, 30 min |
| Includes Rubber Boot |
No |
| Display Screen Type |
LCD |
| Battery Run Time |
2,000 hr |
| Process Temperature Range |
14 Degrees to 140 Degrees F |
| Process Connection Gender |
Male |
| Sensor Type |
Diaphragm |
| Bar Graph |
10 Segments |
| Languages |
English |
| Differentiator (HIDDEN) |
452074SD02L300BL No |
| Low Battery Indicator |
No |
| Battery Type |
(2) C Batteries |
| Display Range |
0 to 15515 mm Hg, 0 to 2.0684 Mpa, 0 to 20.685 bar, 0 to 2068.4 kpa, 0 to 21.093 kg/sq cm, 0 to 300 psi, 0 to 610.8 in Hg, 0 to 692.3 ft H2O |
| Includes Calibration Certificate |
No |
| Hazardous Location Rating |
Not Rated |
| Temperature Error |
0.04% Degrees F |
| With Calibration Certificate |
Standard Gauge |
| Burst Pressure |
2,400 psi |
| Backlit Screen |
Yes |
| Adjustable Set Points |
No |
| Process Connection Location |
Bottom |
| Primary Display Range |
0 to 300 |
| Sensor Material |
Stainless Steel |
| IP/NEMA Rating |
IP65 |
| Primary Units |
psi |
| Lens Material |
Polyester |
| Pressure Range Type |
Pressure |
| Process Connection Type |
NPT |
| Power Source |
Battery |
| Includes Batteries |
Yes |
| Blowout Safety Back |
No |
| Weatherproof |
Yes |
| Data Update Frequency |
100 msec, 200 msec, 500 msec, 1 sec |
| Test Pressure Gauge Type |
Test Pressure Gauge |
| Memory Features |
Min/Max |
| Number of Digits |
5 |
| Non-Sparking |
No |
| Primary Display Units |
psi |
| Pressure Gauge Type |
Test Pressure Gauge |
| Panel-Mountable |
No |
| Panel Mount Characteristics |
3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle |
| Primary Range |
0 to 300 |
| Gauge Wetted Parts |
Stainless Steel |
| Gauge Mounting Type |
Stem-Mount |
