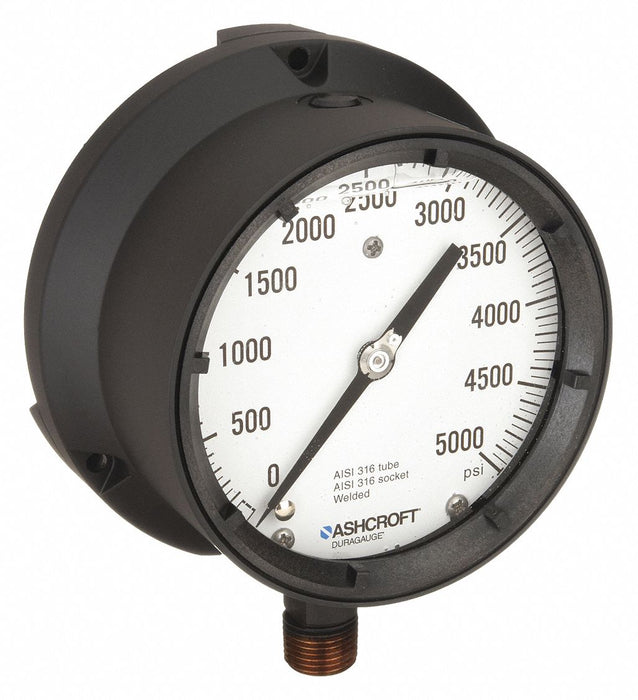

Ashcroft 451379SSL04L5000 Process Pressure Gauge 0-5000 psi

Ashcroft 451379SSL04L5000# Process Pressure Gauge, 0 psi to 5,000 psi, White, 4 1/2 in Dial, 1/2 in NPT Male, Bottom

UPC: 723259820464 | Harmonization / Schedule B : 9026.20.4000

Country of Origin: United States | Shipping Weight: 3.95 lbs

$366.20 - $366.20
$366.20
$366.20 - $366.20
$366.20

These gauges feature stainless steel cases and wetted parts to resist corrosion, rust, and caustic chemicals. Their case resists vibration and pulsation, and they are used in high temperature process media where temperatures exceed 140°F.

Accuracy ±0.5%
Accuracy Grade ASME B40.100 Grade 2A
Pressure Range 0 psi to 5,000 psi
Primary Scale Units psi
Process Connection 1/2 in NPT Male
Process Connection Location Bottom
Nominal Dial Size 4-1/2 in
Dial Color White
Dial Face Material Aluminum
Lens Material Glass
Case Material Epoxy-Coated Aluminum
Case Color Black
Case Depth 3.375 in
Case Diameter 5.812 in
Case Finish Epoxy Coated
Bezel Material Polypropylene
Wetted Parts Material 316L Stainless Steel
Sensor Material 316L Stainless Steel
Sensor Type Bourdon Tube
Socket Material 316L Stainless Steel
Movement Material 400 Stainless Steel
Pointer Color Black
Pointer Material Aluminum
Liquid-Filled Case Yes
Gauge Case Liquid Glycerin
Field Fillable Yes
Vibration Resistance Liquid-Filled
Blowout Safety Back Yes
Burst Pressure 25,300 psi
Process Media Temperature 20 to 150 °F
Operating Temperature 20 to 150 °F
Primary Scale Minor Graduations 50
Primary Scale Numeric Increments 500
IP Rating IP66
NEMA Enclosure Rating 4X
Mounting Type Stem-Mount
Standards ASME, CE, CRN, UKCA
Series 1379
Manufacturer Warranty 10 yr
