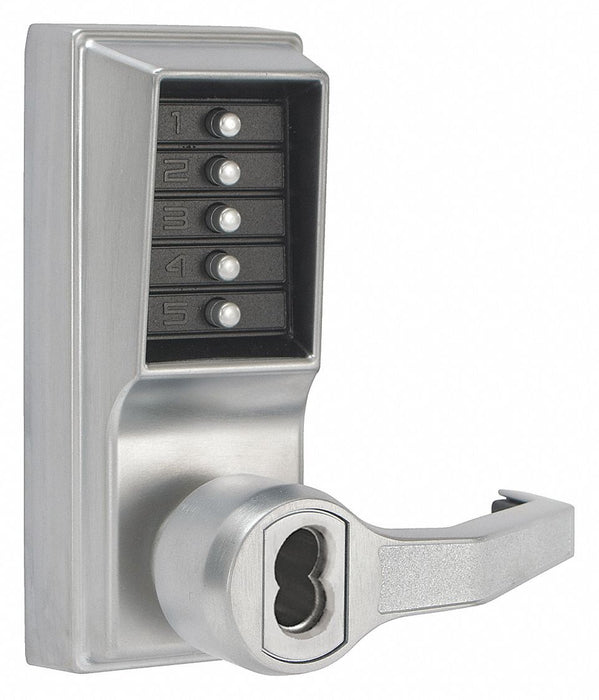

Simplex LR1021M-26D-41 Mechanical Push Button Lockset, ADA Compliant, Satin Chrome

Simplex LR1021M-26D-41 Mechanical Push Button Lockset, ADA Compliant, Satin Chrome

UPC: | Harmonization / Schedule B : 8301.40.6030

Country of Origin: Mexico | Shipping Weight: 10.4 lbs

$833.73 - $833.73
$833.73
$833.73 - $833.73
$833.73

Mechanical Push Button Lockset, Handle Type Lever, Function Entry with Key Override, Key Override Options LFIC Medeco/ASSA/Yale/Abloy (5 or 6-Pin length) Core Not Included, Hand Right, Finish Satin Chrome, Door Thickness 1-3/8 in to 2-1/4 in, Keypad 5 Button, Vandal Resistant, Backset 2 3/4 in, ADA Compliant Yes, 3 hr Fire Rated, Case Material Zinc, Series L1000, Latch Length 1/2 in, Max. User Codes 1, Standards UL/cUL Listed, Weather Resistant Yes, Includes Code Change Plug, Template

For Door Thickness (In.) 1-3/8" to 2-1/4"
Door Thickness 1-3/8 in to 2-1/4 in
Latch Length 1/2 in
Outside Width 3 1/8 in
Inside Height 9 in
Inside Width 3 1/4 in
Manufacturers Warranty Length 3 yr
Inside Depth 2 3/8 in
Outside Height 7 3/8 in
Outside Depth 3 13/16 in
Overall Height 9 in
Overall Width 3 1/8 in
Latch Front Size 1/2"
Overall Depth 3 13/16 in
Door Thickness - Maximum 2 1/4 in
Door Thickness - Minimum 1 3/8 in
Finish Satin Chrome
Material Zinc
For Use With Medeco R/C
Number of Keys 5
Max. User Codes 1
Backset 2 3/4 in
Weather Resistant Yes
Key Override Options LFIC Medeco/ASSA/Yale/Abloy (5 or 6-Pin length) Core Not Included
Function Entry with Key Override
Fire Rated 3 hr
Standards UL/cUL Listed
Hand Right
Case Material Zinc
Handle Type Lever
Series L1000
ADA Compliant Yes
Electrical/Mechanical Mechanical
Includes Code Change Plug, Template
Keypad 5 Button, Vandal Resistant
Operation Type Push Button
Type Mechanical
Product Type Mechanical Push Button Lockset
Operating Temp. Range -31 Degrees to 151 Degrees F
Max. Proximity Range At Lock
Fire Rating 3 hr
User Codes - Maximum 1
Lockset Handle Type Lever
Includes Core Core Not Included
Number of Keypad Buttons 5
ANSI/BHMA Finish Satin Chromium-Plated
Mortise/Cylindrical Cylindrical
Lockset Type Mechanical
Lockset Function Entrance
Hand Orientation Right-Handed
Includes Hardware Hardware Included
Country of Origin Mexico
