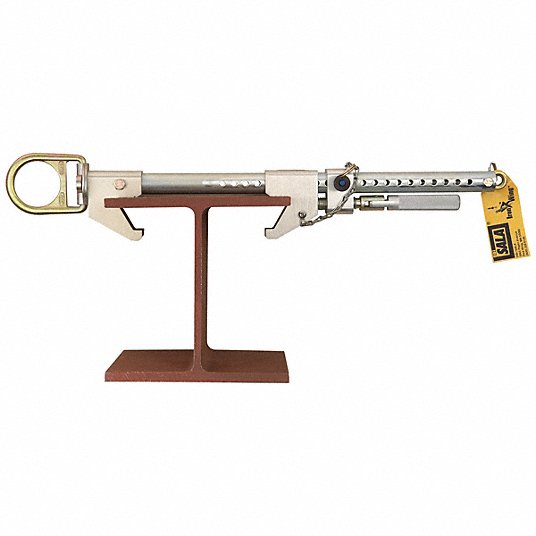

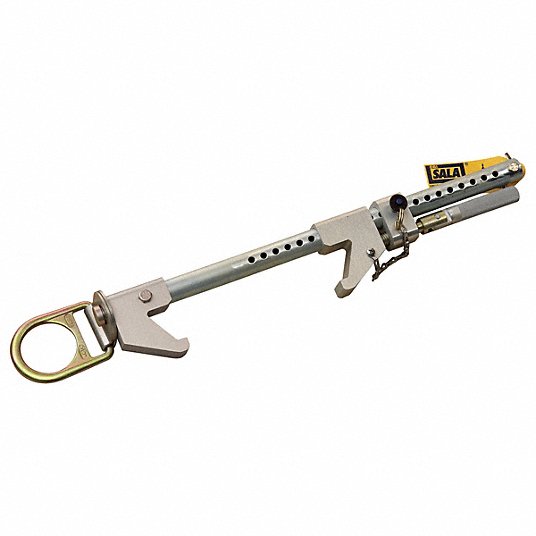

3M DBI-Sala 2108406 Fixed Beam Anchor Pivot D-Ring, Sliding Beam Clamp, For 2 1/2 in to 12 in Flange Wd

Fixed Beam Anchor, Length 20 in, For Maximum Rail Weight Not Applicable, Workers per System 1, For Maximum Rail Head Width Not Applicable, Depth 2 1/2 in, Attachment Point Pivot D-Ring, Anchor Material Aluminum, Stainless Steel, Anchor Installation Reusable, Mounting Orientation Horizontal, Vertical, Anchorage End Connection Clamp, Beam Clamp Style Sliding, ANSI Standards Met ANSI Z359.1, For Maximum Flange Width 12 in

Standards	OSHA, ANSI Z359
Weight Capacity	310 lb
Tensile Strength	5,000 lb
Anchor Material	Aluminum, Stainless Steel
Attachment Point	Pivot D-Ring
Workers per System	1
Material	Anodized Aluminum, Stainless Steel
Installation	Temporary
D-Ring Material	Aluminum, Steel
Anchor Performance	General Purpose
Sliding Mechanism	Nylon Wear Pads
Beam Clamp Style	Sliding
Brand and Series	3M DBI-SALA
Anchor Installation	Reusable
Adjustment Style	Detent Pin
Mounting Orientation	Horizontal, Vertical
Anchorage End Connection	Clamp
ANSI Standards Met	ANSI Z359.1
Series	DBI-SALA
OSHA Standards Met	OSHA 1910.140, OSHA 1926.502
