Approved Vendor BULK-PS-PTFE-676 PTFE Sheet 0.125 in

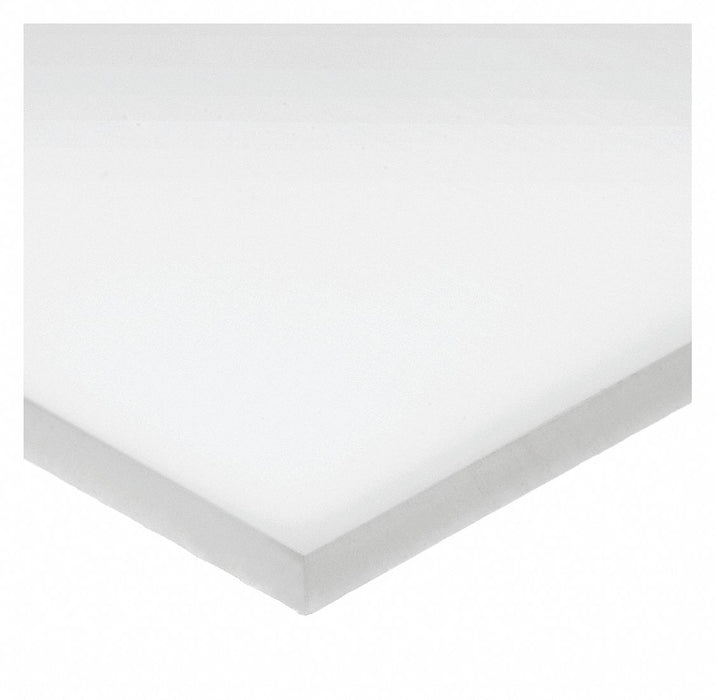

Approved Vendor BULK-PS-PTFE-676 PTFE Sheet, 0.125 in Thick, 12 in x 24 in, White, Opaque

UPC: 193005909475 | Harmonization / Schedule B : 3920.10.0000

Country of Origin: Multiple | Shipping Weight: 2.74 lbs

$164.00 - $164.00
$164.00
$164.00 - $164.00
$164.00

PTFE Sheet, PTFE, Grade Standard, Plastic Length 24 in, Plastic Width 12 in, Plastic Thickness 0.125 in, White, Plastic Clarity Opaque, Tensile Strength 3,000 psi, Impact Strength 3.5 ft-lb/in, Friction Coefficient 0.07, Water Absorption 0.01 Percent, Temperature Range -290 Degrees to 500 Degrees F, Plastic Density 0.078 lb/cu in, Plastic Hardness 55D

Plastic Material PTFE
Plastic Color White
Max. Temp. (F) 500 Degrees F
Min. Temp. (F) -290 Degrees F
Color White
Operating Temp. Range -290 Degrees to 500 Degrees F
Material PTFE
Tensile Strength 3,000 psi
Standards FDA, UL 94 V-0
Thickness Tolerance (-0" - +0.004")
Impact Strength 3.5 ft-lb/in
Tensile Strength Rating Poor
Friction Rating Very Slippery
Maximum Adhesive Temperature 375 Degrees F
Water Absorption 0.01 %
Minimum Adhesive Temperature -30 Degrees F
Backing Type Acrylic Adhesive
Shape Rectangle
Friction Coefficient 0.07
Plastic Hardness 55D
Plastic Density 0.078 lb/cu in
Water Absorption Rating Excellent
Impact Strength Rating Good
Grade Standard
Plastic Clarity Opaque
Plastic Thickness Tolerance +0.007/-0.003 in
Temperature Range -290 Degrees to 500 Degrees F
UV Resistant Yes
Machinability 100 %
Minimum Temperature -290 Degrees F
Plastic Hardness Rating Medium Soft
Wear Factor Excellent
Corrosion and Chemical Resistance Excellent
Maximum Temperature 500 Degrees F
Product Type Plastic Sheet
Elongation 300 %
Dielectric Strength 28.5 kV/mm
UV-Resistant UV-Resistant
Weight 2.74 lb
Flexural Modulus 400 MPa
Product Form Sheet
Shore Hardness 55 Shore D
Scratch-Resistant Not Scratch-Resistant
Rockwell Hardness 75 HRR
Coefficient of Thermal Expansion 11.6 x 10^-5 K^-1
Metal Detectable Not Metal Detectable
Static-Resistant Not Static-Resistant
Wear Rate Not Rated
Country of Origin Multiple
