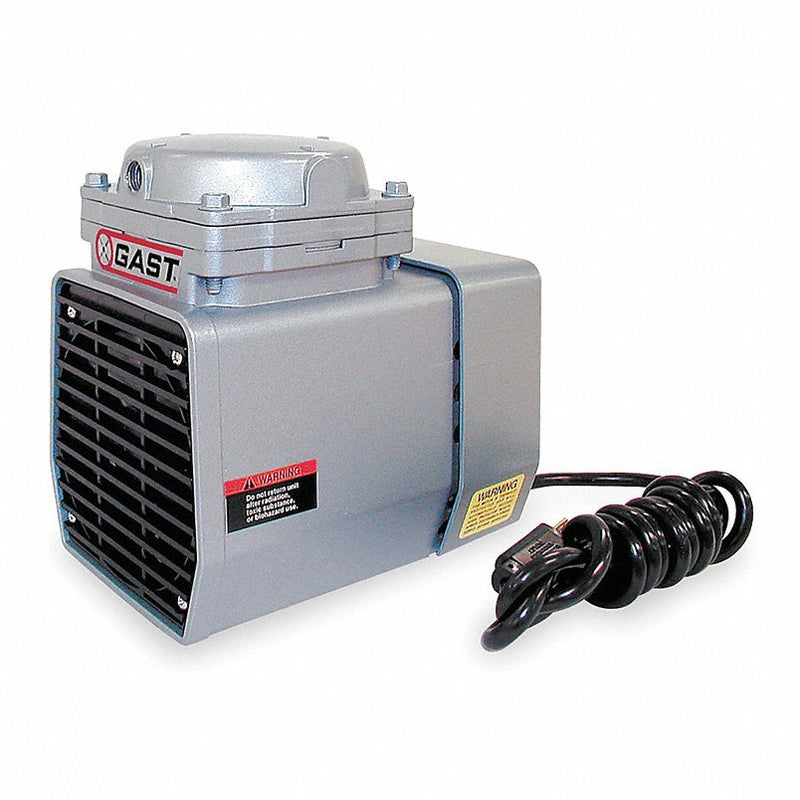

Gast DOA-P707-AA Compressr/Vacuum Pump, 1/8 HP, 60 Hz, 115V - KVM Tools Inc.KV2Z866

Gast DOA-P707-AA Compressr/Vacuum Pump, 1/8 HP, 60 Hz, 115V

UPC: 465009666761 | Harmonization / Schedule B : 8414.80.1605

Country of Origin: United States | Shipping Weight: 13.45 lbs

$610.59 - $610.59
$610.59
$610.59 - $610.59
$610.59

Compressor/Vacuum Pump, Output Power 1/8 hp, Voltage 115V AC, Maximum Vacuum 25.5 in Hg, Maximum Continuous Pressure 60 psi, Maximum Intermittent Pressure 60 psi, Maximum Flow Rate 0.55 cfm @ 30 psi, 1.1 cfm @ 0 psi, Inlet Size 1/4 in, Inlet Connection Type NPT, Outlet Size 1/4 in, Outlet Connection Type NPT, Compressor Type Diaphragm, Current Rating 4.2 A

Item Compressor/Vacuum Pump
Compressor Type Diaphragm
HP 1/8 hp
Voltage 115V AC
Full Load Amps 4.2
Max. Vacuum 25.5 in Hg
Max. PSI Cont./Int. 60/60
Free Air CFM @ 0 PSI 1.1
Free Air CFM @ 20 Vacuum 0.2
Free Air CFM @ 0 Vacuum 1.1
Hz 60
Free Air CFM @ 30 PSI 0.55
Standards ISO 14001, ISO 9001
Flow Rate @ 30 psi 0.55 cfm
Flow Rate @ 0 psi 1.1 cfm
Inlet Connection Type NPT
Maximum Flow Rate 0.55 cfm @ 30 psi, 1.1 cfm @ 0 psi
Current Rating 4.2 A
Frequency 60 Hz
Pump Type Diaphragm
Maximum Continuous Pressure 60 psi
Output Power 1/8 hp
Max. Pressure Cont/Int 60 psi / 60 psi
Outlet Connection Type NPT
Maximum Vacuum 25.5 in Hg
Maximum Flow Rate @ Pressure 0.55 cfm @ 30 psi
Maximum Intermittent Pressure 60 psi
Outlet Connection Type NPT
Inlet Connection Type NPT
Package Quantity 1
