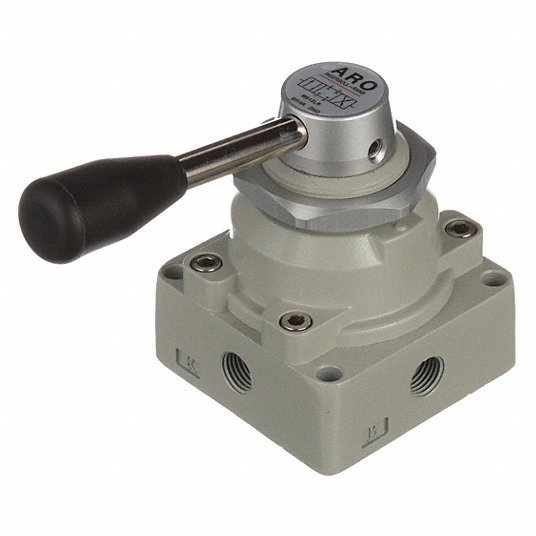

ARO M512LR Manual Air Control Valve MaxAir, Four-Way / Three-Position, Lever, Black, Closed, Manual Return

UPC: 695977805514 | Harmonization / Schedule B : 8481.80.5090

Country of Origin: Taiwan | Shipping Weight: 1.28 lbs

Original price $306.45 - Original price $306.45
Original price
$306.45
$306.45 - $306.45
Current price $306.45
Manual Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Rotary Lever / Manual, Max. CFM - Valves 40 cfm, Valve Max. Pressure Rating 140 psi, Valve Temp. Range 15 Degrees to 122 Degrees F, Center Position Closed, Coefficient of Volume 1.2, Body Material Aluminum, Overall Length 2 15/16 in, Overall Height 4 5/16 in, Overall Width 2 15/16 in, Series MaxAir, Manual Air Control Valve
Actuator/Return Rotary Lever/Manual
Center Position Closed
Coefficient of Volume 1.2
Series MaxAir
Number of Ways Four-Way
Number of Positions Three-Position
Valve Temp. Range 15 Degrees to 122 Degrees F
Valve Actuator / Return Rotary Lever / Manual
Valve Max. Pressure Rating 140 psi
Body Material Aluminum
Air Valve Type 4-Way, 3-Position
Connection NPT
Valve Ways and Positions 4-Way/3-Position
Max. CFM - Valves 40 cfm
Max. Pressure 140 psi
CFM 4.3
Temp. Range 15 Degrees to 122 Degrees F
Application Air Motors, Material Handling, Packaging
Seal Material Buna-N
Force @ 50 psi 11 lb
Product Type Manual Air Control Valve
Operating Temperature - Minimum 15 Degrees F
Exhaust Port Connection Gender Female
Body Style Panel-Mounted
Vacuum Rating Not Vacuum Operable
Operating Pressure - Maximum 140 psi
Valve Type Rotary
Operating Pressure - Minimum 20 psi
Valve Action Normally Closed
Coefficient of Volume (Cv) 1.25
Valve Port Connection Type NPT
Fail Position Open/Closed
Valve Port Connection Gender Female
For Media Air
Flow Rate - Maximum 40 scfm
Actuation Force @ 125 psi 11 lb
Return Action Manual Return
Actuator Color Black
Actuator Type Lever
Operating Temperature - Maximum 122 Degrees F
Number of Ports 4
Exhaust Port Connection Type Threaded
