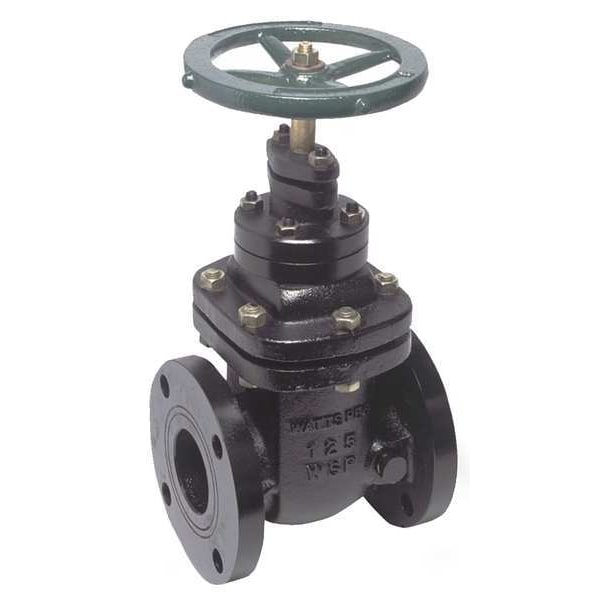

Watts NRS-RW-Gate21/2 Cast Iron Gate Valve 2-1/2 in

Watts NRS-RW-Gate21/2 Gate Valve, 2 1/2 in Nominal Valve Size, Cast Iron, Non-Rising, Class 200 Flange, Wheel

UPC: 098268347876 | Harmonization / Schedule B : 8481.80.3010

Country of Origin: China | Shipping Weight: 32 lbs

$1,535.05 - $1,535.05
$1,535.05
$1,535.05 - $1,535.05
$1,535.05

Cast iron non-rising-stem gate valves are vibration-resistant and suitable for high-temperature applications. Non-rising stem valves, also known as insider screw valves, have stems that do not extend when the valve is opened, and are used in areas with limited space.

For Media Water
Body Material Cast Iron
Nominal Valve Size 2-1/2 in
ANSI Flange Class Class 200
Connection Type Class 200 Flange
Connection Size - Side 1 2-1/2 in
Connection Type - Side 1 Flange
Connection Size - Side 2 2-1/2 in
Connection Type - Side 2 Flange
Number of Flange Bolt Holes 4
Max. Pressure (CWP) 200 psi
Operating Temperature 33 to 140 °F
Stem Type Non-Rising
Stem Material Stainless Steel
Wedge Style Resilient
Wedge Material Cast Iron
Handle Type Wheel
Handle Material Cast Iron
Handle Diameter 7.06 in
Handle Height 9.063 in
Bonnet Material Cast Iron
Bonnet Style Bolted
Overall Length 7.5 in
