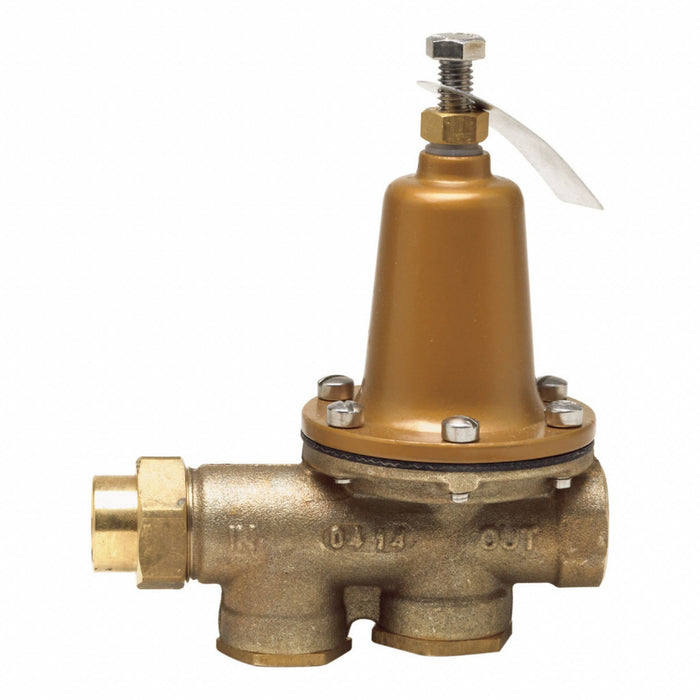

Watts 3/4 LF 25 AUB-Z3 Water Pressure Reducing Valve, 3/4 in, FNPT Union x FNPT, Lead Free Brass, 25-75 psi

Watts 3/4 LF 25 AUB-Z3 Water Pressure Reducing Valve, 3/4 in, FNPT Union x FNPT, Lead Free Brass, 25-75 psi

UPC: 098268520859 | Harmonization / Schedule B : 8481.80.1095

Country of Origin: United States | Shipping Weight: 3.3 lbs

$495.51 - $495.51
$495.51
$495.51 - $495.51
$495.51

Water Pressure Reducing Valve, Valve Type Standard, Strainer Yes, Material Lead Free Brass, Pipe Size 3/4 In., Preset Pressure Settings 50 psi, Pressure Adjustment Range 25 to 75 psi, Connection Type FNPT Union x FNPT, Height 8 In., Length 6-7/8 In., Max. Temp. 160 Degrees F, Max. Pressure 300 psi, Standards ASSE 1003, ANSI A112.26.2, CSA B356, Standard Plumbing Code Military Standard MIL-V-18146B Type 1, IAPMO

Connection Type FNPT Union x FNPT
Body Material Lead Free Copper Silicon Alloy
Max. Pressure 300 psi
Max. Temp. 160 Degrees F
Material Lead Free Brass
Pressure Adjustment Range 25 to 75 psi
Valve Type Standard
Application Commercial Use, Residential Use
Preset Pressure Settings 50 psi
Standards ANSI A112.26.2, ASSE 1003, CSA B356, IAPMO, Standard Plumbing Code Military Standard MIL-V-18146B Type 1
Strainer Yes
Connection NPT Threaded Female Union Inlet x NPT Female Outlet
Material of Construction Lead-Free Brass
Seat Material Polymer
Disc Material EPDM
Factory Set Pressure 50 psi
NSF Certifications for Food and Drinking Water NSF 61G
Pilot Adjustment - Minimum 25 psi
Port Design Full Port
Coating/Lining NSF Listed Fusion Bonded Epoxy Lining and Coating
Outlet Connection Type NPT
Inlet Connection Type NPT
Pilot Adjustment - Maximum 75 psi
For Media Water
Operating Pressure - Maximum 300 psi
Includes Strainer Strainer Included
Fluid Temperature - Maximum 180 Degrees F
Country of Origin United States
