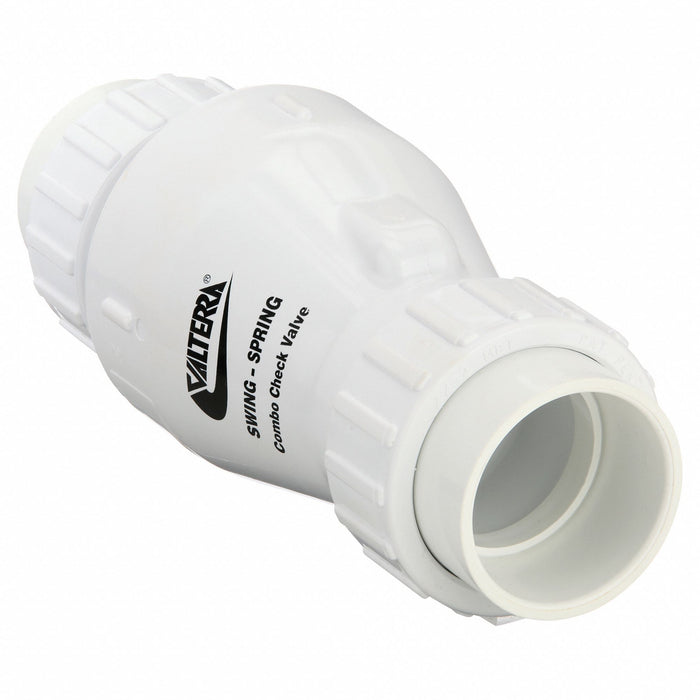

Valterra 200-U20 Check Valve, Swing, Inline Valve Body, 2 in Pipe Size, True Union Socket, PVC, Female, PVC

Valterra 200-U20 Check Valve, Swing, Inline Valve Body, 2 in Pipe Size, True Union Socket, PVC, Female, PVC

UPC: 019079204202 | Harmonization / Schedule B : 8481.30.9000

Country of Origin: United States | Shipping Weight: 1.85 lbs

$56.11 - $56.11
$56.11
$56.11 - $56.11
$56.11

Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring Swing, Body Material PVC, Pipe or Tube Size 2 in, Connection Type Union x Union, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material NBR, Max. Temp. 73 Degrees F, Min. Temp. 35 Degrees F, Max. Water Pressure 150 psi, Max. Steam Pressure Not Rated, Seat Material PVC, Spring Material Stainless Steel, Flow 18 gpm

Connection Type Union x Union
Body Material PVC
Max. Pressure 150 psi
Spring Material 316 Stainless Steel
Seat Material PVC
Cracking Pressure - Check Valves 0.500 psi
Mounting Orientation - Check Valves Horizontal, Vertical
Min. Temp. - Valves 35 Degrees F
Flow Design Single
Max. Temp. 73 Degrees F
Material of Construction PVC
Max. Steam Pressure - Valves Not Rated
Seal Material Buna-N
Body Material - Valves PVC
Full Flow - Valves No
Cracking Pressure 0.5 psi
Mechanism and Body Design Inline Spring Swing
Seal Material - Check Valves NBR
Seat Material - Check Valves PVC
Spring Material - Check Valves Stainless Steel
Connection Type - Check Valves Union x Union
Sub-Category PVC
Mounting Position Any
Max. Temp. - Valves 73 Degrees F
Max. Water Pressure 150 psi
Application - Valves General Purpose
Flow - Valves 18.00 gpm
Max. Water Pressure - Valves 150 psi
Flow 18 gpm
Mounting Orientation Horizontal, Vertical
Operating Temperature - Minimum 35 Degrees F
Operating Temperature - Maximum 73 Degrees F
Check Mechanism Material 316 Stainless Steel
Valve Body Style Inline
Connection Type - Side 1 Union Socket
Connection Type - Side 2 Union Socket
Maximum Pressure - Steam Not Rated
Maximum Pressure - Operating 150 psi
For Media General Purpose
Connection Gender - Side 2 Female
Check Mechanism Swing
Connection Gender - Side 1 Female
Country of Origin United States
