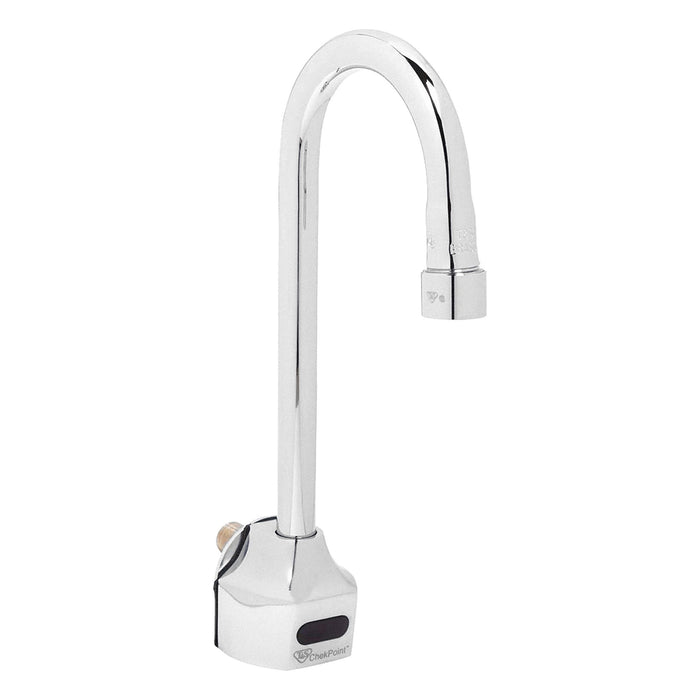

T&S Brass EC-3101 Bathroom Sensor Faucet, Checkpoint, Brass, Chrome, Single-Post Wall Mount, Gooseneck, Battery, 2.2 gpm

T&S Brass EC-3101 Bathroom Sensor Faucet, Checkpoint, Brass, Chrome, Single-Post Wall Mount, Gooseneck, Battery, 2.2 gpm

UPC: 671262667715 | Harmonization / Schedule B : 8481.80.9020

Country of Origin: United States | Shipping Weight: 7.3 lbs

$1,042.38 - $1,042.38
$1,042.38
$1,042.38 - $1,042.38
$1,042.38

Bathroom Faucet, Faucet Operation Sensor, Number of Handles 0, Faucet Handle Type None, Connection 3/8 In. Compression, 2.20 gpm Flow Rate, Number of Holes 1, Mounting Hole Center to Center Single Hole, Body Material Brass, Faucet Spout Shape Straight, ADA Compliant Yes, Drain Type None, Mounting Type - Faucet Wall, Power Source Battery, Voltage 110VDC, Spout Length 13/16 In., Sensor Range 2 In. to 20 In., Valve Type Compression, Faucet Finish Chrome, Height 11 In.

Material Brass
Finish Chrome
Drain Type None
Body Material Brass
Vandal Resistant Features Vandal Resistant Outlet
Faucet Operation Sensor
Number of Holes 1
Faucet Handle Type None
Flow Outlet Type (Faucet) Aerated
Mounting Type - Faucet Wall
Faucet Finish Chrome
Power Source Battery
Mounting Hole Center to Center Single Hole
Standards ASME A112.18.1/CSA B125.1, NSF 372, NSF 61/9, UL Certified
Voltage 110V DC
ADA Compliant Yes
Ligature Resistant No
Series Checkpoint
Faucet Spout Shape Gooseneck
Flow Rate 2.2 gpm
Connection 3/8" Compression
CEC Compliant Non CEC Compliant
Mounting Type (Faucet) Wall
Battery Charger CEC Compliant Non CEC Compliant
Replacement Cartridge None
Faucet Type Bathroom Sink Faucet
Flow Outlet Type - Faucet Aerated
ADA Compliance ADA Compliant
Sensor Range 5 1/2 in
Temp. Control Yes
Commercial / Residential Commercial
Residential / Commercial Commercial
Includes Control Module
Number of Handles 0
Flow Outlet Type Vandal Resistant Aerator
Mounting Type Wall
Features Single hole wall mount faucet w/ polished chrome plated brass body, 4 1/8 in rigid gooseneck, 2.2 GPM vandal resistant aerator, Series 6 (B-0199-06), Water resistant control module w/ internal flow control switches for adjusting auto time out & shut off delay settings, Optional auto flush feature flows water for 30 seconds after every 12 inactive hours, Plug in AC transformer or (4) AA battery (DC) power options, Mechanical temperature mixing valve w/ check valves, Two flexible stainless steel supply hoses w/ 3/8 in compression connections, Low battery LED indicator light
Faucet Body Material Brass
Valve Type - Faucets Hot/Cold Cartridge
Max. Mounting Hole Center Distance Single Hole
Replacement Cartridge Mfr. Model Number 5EF-0006
Faucet Activation Motion Sensor
Spout Reach 4 1/8 in
Water Inlet Connection Type NPSM
Temperature Control Adjustable Temperature
Battery Type AA
Product Type Sensor Faucet
Operation Method Motion Sensor
Compatible Cartridge Manufacturer Part Number 5EF-0006
Vandal Resistance Vandal-Resistant Outlet
Temperature - Minimum 40 Degrees F
Sensor Range - Maximum 12 in
Number of Batteries 2
Ligature Resistance Not Ligature-Resistant
Includes Handle Handle Not Included
Flow Type Aerated
Flow Rate - Maximum 2.2 gpm
Temperature - Maximum 140 Degrees F
For Location Bathroom
Warranty 1 yr Parts
Includes Batteries Batteries Included
Time Out 30 sec
Inlet Connection Type NPSM
CEC Compliance Not CEC Compliant
Number of Mounting Holes 1
Spout Shape Gooseneck
Water Supply Type Hot and Cold Lines
Pressure - Maximum 125 psi
Sensor Range - Minimum 3/4 in
Country of Origin United States
