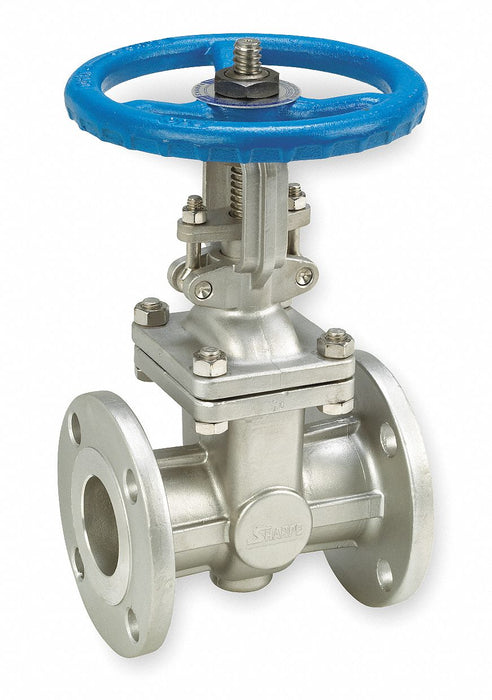

Sharpe 4371004840 316 Stainless Steel Gate Valve 2 in

Sharpe 4371004840 Gate Valve, 2 in, 316 Stainless Steel, Rising, Class 150 Flange, 275 psi Max Pressure CWP

UPC: | Harmonization / Schedule B : 8481.80.3055

Country of Origin: China | Shipping Weight: 25 lbs

$1,659.60 - $1,659.60
$1,659.60
$1,659.60 - $1,659.60
$1,659.60

Gate Valve, For Media Steam, Water, Body Material 316 Stainless Steel, Nominal Valve Size 2 in, ANSI Flange Class Class 150, Maximum Pressure - Operating 275 psi, Stem Type Rising, Stem Material 316 Stainless Steel, Wedge Style Flexible, Wedge Material CF8M Stainless Steel, Seat Material Stainless Steel, Seal Material RPTFE, Handle Type Wheel, Bonnet Material Stainless Steel, Bonnet Style Bolted.

For Media Steam, Water
Body Material 316 Stainless Steel
Nominal Valve Size 2 in
Pipe Size 2 in
Connection Type Flanged
ANSI Flange Class Class 150
Connection Type - Side 1 Flange
Connection Type - Side 2 Flange
Connection Size - Side 1 2 in
Connection Size - Side 2 2 in
Number of Flange Bolt Holes 4
Max. Pressure (CWP) 275 psi
Max. Working Steam Pressure 150 psi
Operating Temperature -20 to 450 °F
Stem Type Rising
Stem Material 316 Stainless Steel
Wedge Style Flexible
Wedge Material CF8M Stainless Steel
Seat Material Stainless Steel
Seal Material RPTFE
Handle Type Wheel
Handle Material Ductile Iron
Handle Diameter 7.87 in
Handle Height 13.03 in
Bonnet Material Stainless Steel
Bonnet Style Bolted
Overall Length 7.01 in
Standards API 598, API 603, ASME B16.34
Valve Series 35
