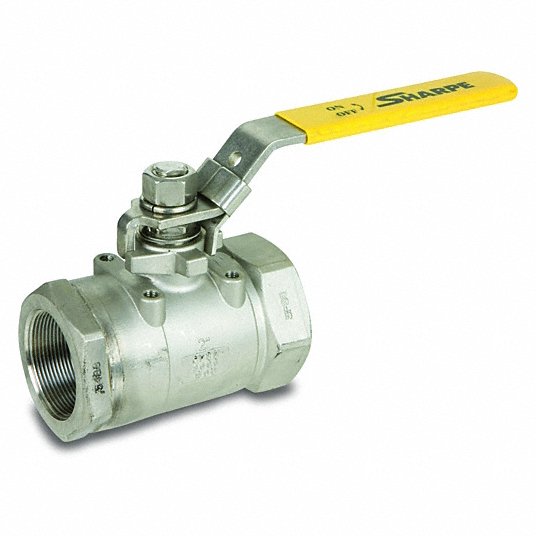

Manual Two-Way Ball Valve, Body Material Stainless Steel, For Media Air, Corrosive Chemicals, Non-Potable Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 3,000 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material 316 Stainless Steel, Ball Port Style Full Port
| Ball Material |
316 Stainless Steel |
| Body Style |
Straight |
| Ball Port Style |
Full Port |
| Valve Ways |
2-Way |
| Valve Structure |
Two-Piece |
| For Media |
Air, Corrosive Chemicals, Non-Potable Water |
| Connection Type |
Thread x Thread |
| Handle Type |
Lever |
| Features |
Bi-Directional, Bubble Tight Shut-Off, Live-Loaded Stem Packing as Standard |
| Stem Material |
630 Stainless Steel |
| Body Material |
Stainless Steel |
| Stem Type |
Blowout Resistant |
| Standards |
ISO 5211, MSS SP-110, NACE MR0175 2002 |
| Seat Material |
Delrin, PEEK |
| Compliance |
ISO 5211, NACE MR0175 |
| Max. Pressure |
3,000 PSI |
| Handle Material |
Stainless Steel |
| Seal Material |
PTFE |
| Handle - Locking |
Locking |
| Color - Valve Handle |
Yellow |
| Connection Type - Side 2 |
NPT |
| Included Mounting |
ISO 5211 Actuator Mounting Pad |
| Operating Temperature - Minimum |
0 Degrees F |
| Maximum Pressure - Steam |
Not Rated |
| Connection Type - Side 1 |
NPT |
| Vacuum Service Rating |
29 in Hg |
| Operating Temperature - Maximum |
200 Degrees F |
| Connection Gender - Side 2 |
Female |
| Maximum Pressure - Combustible Gas |
Not Rated |
| 3-A Standard Compliance |
Not Rated |
| Coefficient of Volume (Cv) |
10 |
| Connection Gender - Side 1 |
Female |
| Valve Series |
50C7 |
