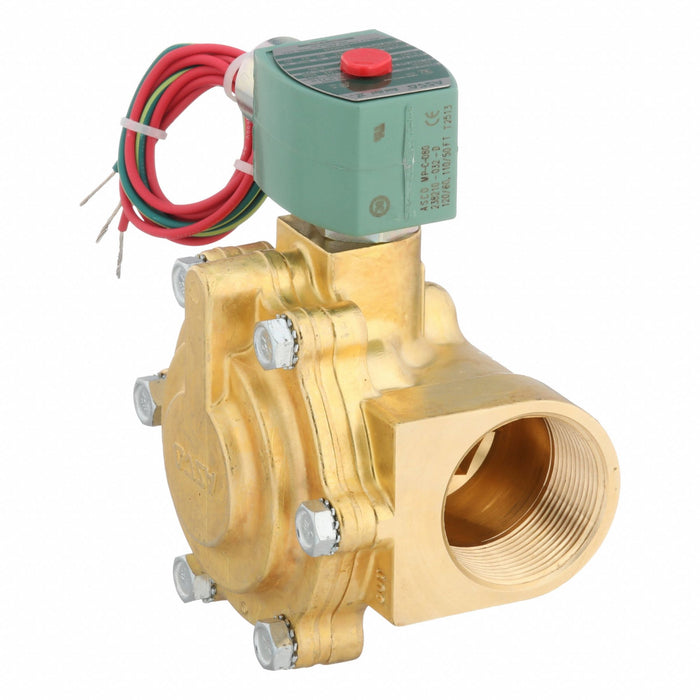

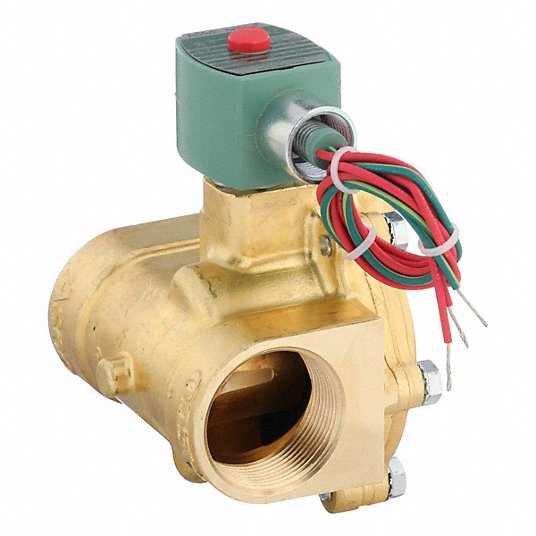

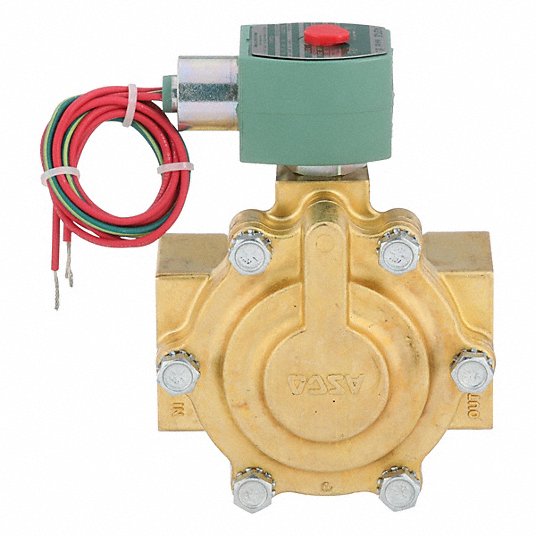

Redhat 8221G011 Solenoid Valve, 2-Way, Normally Closed, 1 1/2 in Pipe Size, 110V AC/120V AC, Slow-Closing

Redhat 8221G011 Solenoid Valve, 2-Way, Normally Closed, 1 1/2 in Pipe Size, 110V AC/120V AC, Slow-Closing

UPC: | Harmonization / Schedule B : 8481.80.9005

Country of Origin: Mexico | Shipping Weight: 5 lbs

$1,833.50 - $1,833.50
$1,833.50
$1,833.50 - $1,833.50
$1,833.50

The ASCO 8221G011 Solenoid Valve is a 2-Way/2-Position, pilot-operated valve designed to control the flow of water with a normally closed configuration. It is constructed with a brass body and features a slow-closing mechanism. This valve operates at 120V AC with a coil wattage of 6.1 W and includes both the coil and seals for installation. The valve also features an IP66-rated enclosure without a junction box, rated for use in corrosive, hazardous, indoor, and outdoor environments.

For Media Water
Valve Ways 2-Way
Valve Starting Configuration Normally Closed
Inlet Connection Type NPTF
Outlet Connection Type NPTF
Voltage 110V AC; 120V AC
Valve Type Slow-Closing
Operation Type Pilot Operated
Seal Material NBR
Operating Pressure Differential - Maximum 150 psi Hot Water, Water
Operating Pressure Differential - Minimum 5 psi Water
Electrical Connections 1/2" Conduit w/18" Leads
IP Rating IP66
Coil Insulation Class F
Coil Enclosure Without Junction Box, Watertight
Body Material Brass
Valve Design 2-Way/2-Position
Application Autoclave, Laundry, Molding, Sterilizers
Standards CSA, UL Listed
Environmental Rating Corrosive, Hazardous, Indoor, Outdoor
Includes Seal Yes
Operating Pressure Differential Hot Water - Maximum 150 psi
Fluid Temperature - Maximum 180 Degrees F
Coefficient of Volume (Cv) 3
Includes Coil Yes
Operating Pressure Differential Light Oil - Maximum Not Rated
Valve Positions 2-Position
Wattage 6.1 W
Operating Pressure Differential Air/Inert Gas - Maximum Not Rated
Operating Pressure Differential Water - Maximum 150 psi
NEMA Enclosure Rating 1, 2, 3, 3S, 4, 4X
Frequency 50 Hz, 60 Hz
Operating Pressure Differential Steam - Maximum Not Rated
Thread Type NPT
Orifice Diameter 1-1/4 in
Overall Height 6-1/4 in
Overall Length 4-3/8 in
Overall Width 4-1/4 in
Country of Origin Mexico
