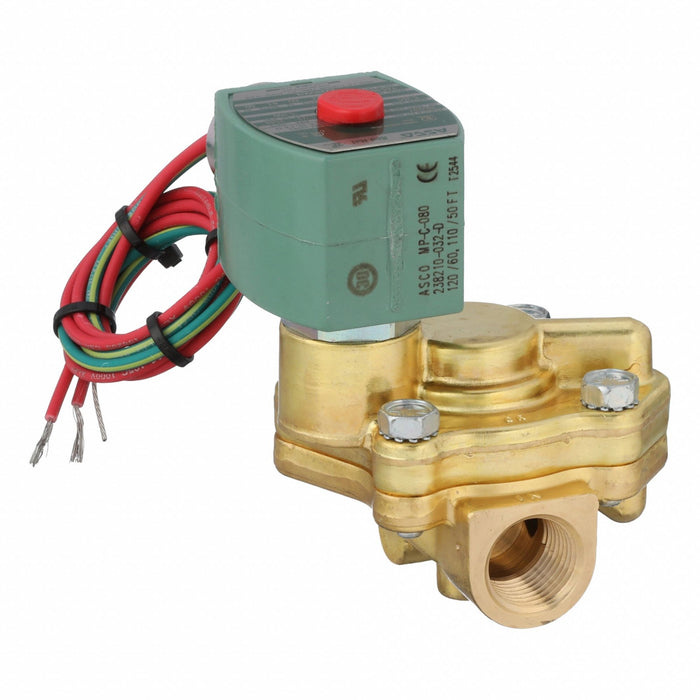

Redhat 8221G003 Solenoid Valve, 2-Way, Normally Closed, 1/2 in Pipe Size, 110V AC/120V AC, Slow-Closing

Redhat 8221G003 Solenoid Valve, 2-Way, Normally Closed, 1/2 in Pipe Size, 110V AC/120V AC, Slow-Closing

UPC: | Harmonization / Schedule B : 8481.80.9005

Country of Origin: Mexico | Shipping Weight: 2.7 lbs

$492.35 - $492.35
$492.35
$492.35 - $492.35
$492.35

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Slow-Closing, Nominal Pipe Size 1/2 in, Orifice Diameter 9/16 in, Body Material Brass, Coefficient of Volume (Cv) 3.5, Operating Pressure Differential Air/Inert Gas - Maximum Not Rated, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable.

For Media Water
Valve Ways 2-Way
Valve Starting Configuration Normally Closed
Inlet Connection Type NPTF
Outlet Connection Type NPTF
Voltage 110V AC; 120V AC
Valve Type Slow-Closing
Operation Type Pilot Operated
Seal Material NBR
Operating Pressure Differential - Maximum 150 psi Hot Water, Water
Operating Pressure Differential - Minimum 5 psi Water
Electrical Connections 1/2" Conduit w/18" Leads
Coil Enclosure Without Junction Box, Watertight
Valve Design 2-Way/2-Position
IP Rating IP66
Coil Insulation Class F
Body Material Brass
Application Autoclave, Laundry, Molding, Sterilizers
Standards CSA, UL Listed
Wattage 6.1 W
Includes Seal Yes
Environmental Rating Corrosive, Hazardous, Indoor, Outdoor
Operating Pressure Differential Light Oil - Maximum Not Rated
Fluid Temperature - Maximum 180 Degrees F
Includes Coil Yes
Thread Type NPT
Coefficient of Volume (Cv) 3.5
Frequency 50 Hz, 60 Hz
NEMA Enclosure Rating 1, 2, 3, 3S, 4, 4X
Operating Pressure Differential Water - Maximum 150 psi
Operating Pressure Differential Hot Water - Maximum 150 psi
Operating Pressure Differential Air/Inert Gas - Maximum Not Rated
Operating Pressure Differential Steam - Maximum Not Rated
Valve Positions 2-Position
Orifice Diameter 9/16 in
Overall Height 4-3/8 in
Overall Length 2-15/16 in
Overall Width 3-7/16 in
Country of Origin Mexico
