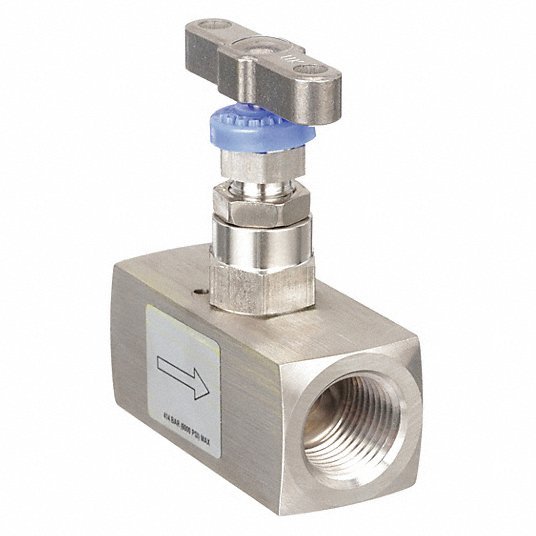

Parker HNVS8FF Needle Valve Inline Valve Body, 316 Stainless Steel, Integral Bonnet, 1/2 in Pipe Size, NPT

Needle Valve, Straight, Body Material 316 Stainless Steel, Pipe Size 1/2 in, FNPT Connection, Stem Type Non-Rotating, Seal Material PTFE, Handle Material Stainless Steel, Max. Pressure 6,000 psi, Temp. Rating -65 Degrees to 450 Degrees F, Max. Flow 0.35 gpm, Max. Height 3 1/8 in, Length 2 1/2 in, Standards C Certified

Connection	FNPT
Body Material	Stainless steel
Max. Pressure	6,000 psi
Max. Flow	0.35 gpm
Item	Needle Valve
Temp. Rating	-65 Degrees to 450 Degrees F
Seal Material	PTFE
Handle Material	Stainless Steel
Stem Type	Stainless Steel
Fitting Style	Straight
Standards	Tested In Accordance to API 598
For Media	Chemicals, Inert Gas, Oil
Maximum Pressure - Operating	6,000 psi
Connection Type - Side 2	NPT
Valve Body Style	Inline
Coefficient of Volume (Cv)	0.35
Connection Gender - Side 2	Female
Operating Temperature - Minimum	-65 Degrees F
Connection Gender - Side 1	Female
Operating Temperature - Maximum	450 Degrees F
Stem Material	Stainless Steel
Bonnet Style	Integral
Connection Type - Side 1	NPT
Valve Series	H
