McMaster 45155K63 High-Pressure On/Off Valve with Spring-Close Lever Handle, Steel, 1/2 Pipe Size

Name: McMaster 45155K63 High-Pressure On/Off Valve with Spring-Close Lever Handle, Steel, 1/2 Pipe Size
Brand: McMaster-Carr
SKU: KV45155K63
Price: 247.09 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 8481.80.3070

Country of Origin: United States | Shipping Weight: 1.3 lbs

$247.09 - $247.09

$247.09

$247.09 - $247.09

$247.09

Quantity

These valves are rated for at least three times the pressure of standard threaded valves.

Spring-close lever handles automatically close when the lever is released

Standard-port valves slightly restrict flow.

Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

Valve Function	On/Off
Valve Type	Ball
Activation	Manual
Valve Operation	Handle
Handle Style	Lever
Handle Type	Spring Close
Fitting Type	Connector
For Use With	Water, Oil, Argon, Helium, Krypton, Neon, Xenon, Steam
Connection Type	Pipe
Connection Style	Threaded
Pipe Size	1/2
Gender	Female
Thread Type	NPT
Flow Coefficient (Cv)	15
Maximum Pressure	2,000 psi @ 50° F
Maximum Steam Pressure	150 psi @ 365° F
Temperature Range	-20° to 500° F
Vacuum Rating	29 in. of Hg
Body Material	Steel
Ball Material	Steel
Seal Material	PTFE Plastic
Seat Material	PTFE Plastic
Packing Material	PTFE Plastic
Port Type	Standard
Shape	Straight

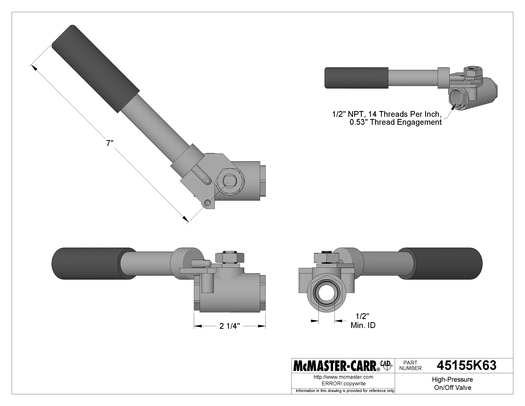

End-to-End Length	2 1/4"
Overall
Height	2 3/8"
Length	6 7/8"
Chemical Resistance (Excellent)	Argon, Helium, Krypton, Neon, Oil, Steam, Water, Xenon
Warning Message	Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency.
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	848180.3070
ECCN	EAR99
