MCM PC1DR4SG0850UGB0A023 Pump 118 Series

118 1X1.5X RH PKD 8.5"IMP SKID 118 1X1-1/2 RH Pedestal/Frame Type Round Type MCM Logo 416 SS Shaft Standard (MCM) Brngs Graphite PK 8-1/2" Impeller Grease Lube Blue PUMP Mntd to SKID PKG- HP WEG class 1 div 1 3 HP 3PH/60HZ/460V Motor RPM - 182T 1800 RPM Skid/Cplg Type Sureflex(WoodsCplng) Motor/Starter Rating XP w/o starter, starter optional

1 Pallet Dimensions: 48 x 40 x 23 inches

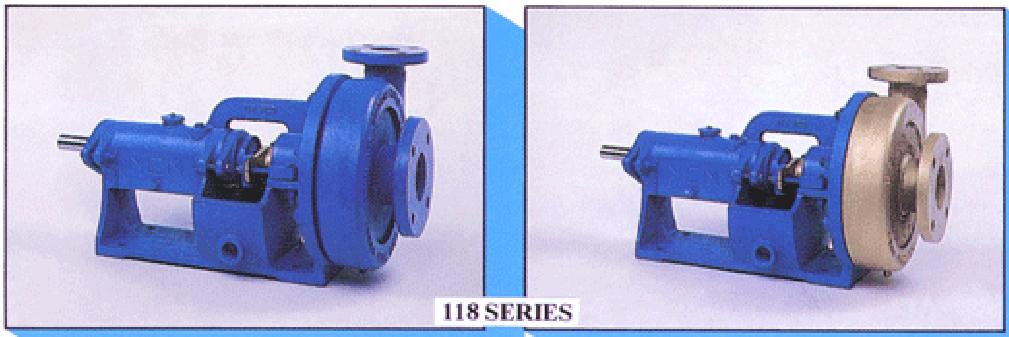

Pumps are available in 118, 178 and 250 series. These Pumps can be built to handle fluid type and meet the needs of customer specific application. The O’Drill/MCM Mud Master Pump is designed to be a space saver. Applications for this pump include blending and pump charging services. The variable hydraulic drive makes it ideal in water well applications.
