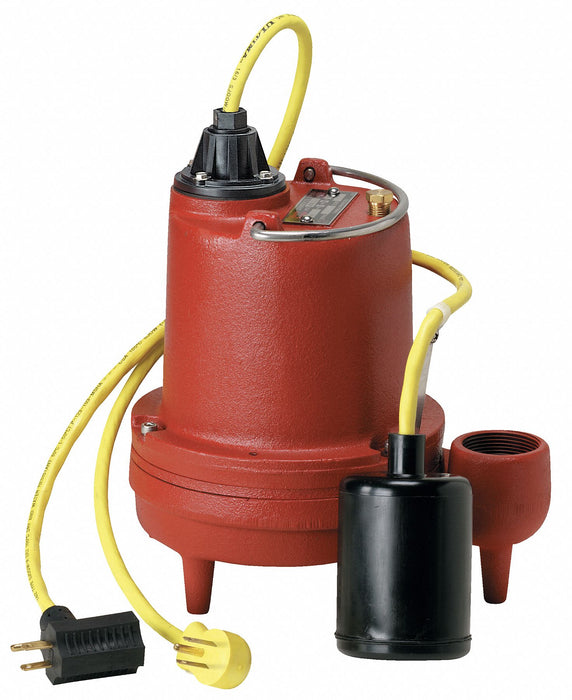

Liberty Pumps HT41M-2 Submersible Sump Pump, 2/5 hp, 115V AC, 65 gpm Flow Rate @ 10' of Head, 1 1/2 in FNPT

Liberty Pumps HT41M-2 Submersible Sump Pump, 2/5 hp, 115V AC, 65 gpm Flow Rate @ 10' of Head, 1 1/2 in FNPT

UPC: 671812103540 | Harmonization / Schedule B : 8413.70.2004

Country of Origin: United States | Shipping Weight: 38.1 lbs

$564.29 - $564.29
$564.29
$564.29 - $564.29
$564.29

Submersible Sump Pump, HP 4/10, Phase - Pumps 1, Rated Voltage 115V AC, Hz 60 Hz, Amps 12 A, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Body Material Cast Iron, Impeller Material Engineered Polymer, Shaft Seal Material - Pumps Carbon, Ceramic, Flow Rate @ 5 Ft. of Head 59.0 gpm, Flow Rate @ 10 Ft. of Head 51 gpm, Flow Rate @ 15 Ft. of Head 31.0 gpm, Max. Head 20 ft, Min. Sump Pit Dia. 14 in, Minimum Water Depth 14 in, Overall Height 11 1/2 in

Cord Length 25 ft
Length 9"
Height 11-13/32"
Manufacturers Warranty Length 3 yr
Width 7-3/4"
Cord Length - Pumps 25 ft.
Min. Sump Pit Dia. 14 in
Max. Diameter Solids 3/4 in
Discharge Dia. 1 1/2 in
Width at Widest Point 7 3/4 in
Overall Height 11 1/2 in
Minimum Water Depth 14 in
Sump Pit Diameter - Minimum 14 in
Solids Diameter - Maximum 3/4 in
Discharge Diameter 1 1/2 in
Body Diameter 9 in
Discharge NPT 1-1/2" F
HP 4/10
Hz 60 Hz
Impeller Material Engineered Polymer
Max. Head 20 ft
Motor RPM 1550
Motor Type Shaded pole
Voltage 115V
Phase Single
Pump HP 4/10
Thermal Protection Yes
Alarm Included No
Item - Sump Pumps High-Temperature Submersible Sump Pump
GPM of Water @ 15 Ft. of Head 31
High Temp. Rated Impeller Yes
Max. Head - Pumps 20 ft.
Amps - Pumps 12.00
Impeller Material - Pumps Engineered Polymer
High Temp. Rated Power Cord Yes
NEC Cord Designation SJEOOW
Input Phase AC 1
Mechanical Seal Buna-N, CRB/CMC, Stainless Steel
GPM of Water @ 10 Ft. of Head 51
GPM of Water @ 5 Ft. of Head 58
Pump RPM 1550
Gauge/Conductor 16/3
Handle Yes
Voltage - Pumps 115VAC
Max. Liquid Temp. 200 Degrees F
Outlet 1-1/2" FNPT
Bearing Type Ball
High Temp. Rated Switch No
Base Material Cast Iron
Switch Type - Pumps Manual
High Temp. Rated Thermal Overload Yes
Duty Continuous
Pump Body Material Cast Iron
Shaft Seal Material - Pumps Carbon, Ceramic
Amps 12 A
Application Dewatering
Discharge 1-1/2 in FNPT
Flow Rate @ 15 Ft. of Head 31.0 gpm
Discharge Standard NPT
RPM 1,550 RPM
Discharge Gender Female
Rated Voltage 115V AC
Phase - Pumps 1
Flow Rate @ 10 Ft. of Head 51 gpm
Switch Actuation No Switch Included
Duty Cycle Continuous
Switch Electrical Connection No Switch Included
Flow Rate @ 5 Ft. of Head 59.0 gpm
Body Material Cast Iron
Frequency 60 Hz
Horsepower 2/5 hp
Motor Housing Material Cast Iron
Rotation Speed - Maximum 1,550 RPM
Installation Submersible
Flow Rate @ 10 ft of Head 65 gpm
Includes Alarm No Alarm Included
Shaft Seal Material Carbon/Ceramic
Series HT40-Series
For Industry Residential
Operation Manual
Feet of Head - Maximum 19 ft
Hazardous Location Class Not Rated
Current 13 A
Power Source Corded Electric
Liquid Temperature - Maximum 200 Degrees F
Impeller Design Vortex
Flow Rate @ 30 ft of Head 0 gpm
For Media Type Clear Water
Country of Origin United States
