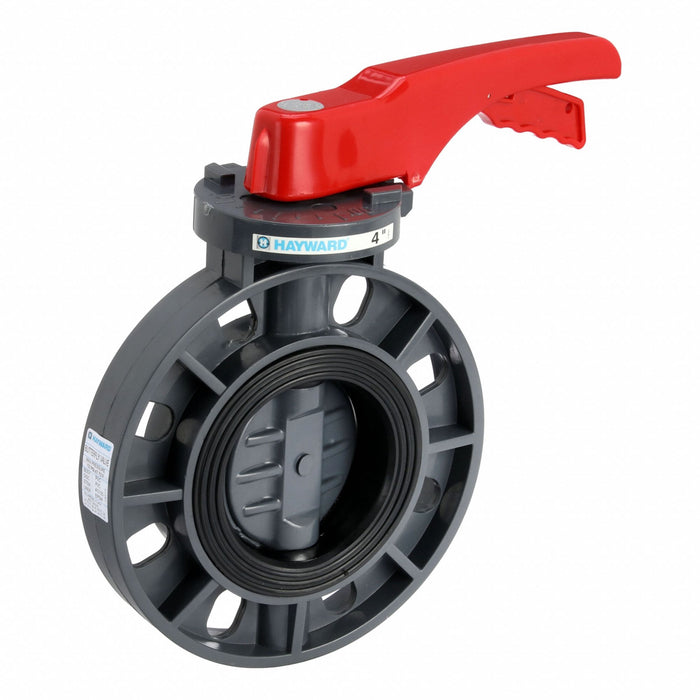

Hayward BYCS1040E1LGA PVC Butterfly Valve 4 in

Hayward BYCS1040E1LGA Butterfly Valve, 4 in Pipe Size, Concentric, 150 psi Max Pressure CWP, Wafer, PVC, 8 Bolt Holes

UPC: 610377145732 | Harmonization / Schedule B : 8481.80.5090

Country of Origin: China | Shipping Weight: 6 lbs

$276.12 - $276.12
$276.12
$276.12 - $276.12
$276.12

PVC (polyvinyl chloride) general-service butterfly valves are made from a corrosion- and chemical-resistant plastic resin.

Style Wafer
Connection Type Wafer
Pipe Size 4 in
Body Material PVC
Disc Material PVC
Disc Alignment Concentric
Liner Material EPDM
O-Ring Material EPDM
Seal Material EPDM
Stem Material 410 Stainless Steel
Handle Type Lever
Handle Material PVC
Handle - Locking Locking
Handle Length 9.8 in
Max. Pressure (CWP) 150 psi
Media Temp. Range 40 to 140 °F
For Media Water
ANSI Flange Class Class 150
Number of Bolt Holes 8
Stop Positions 8
Includes Disc Position Indicator Yes
NSF Certifications NSF 61
Standards ASTM D 1784, ISO 5211
Flow Coefficient (Cv) 470
Valve Series BYCS
