| Voltage |
12 to 24V DC |
| Application |
Agriculture; Barrel Mounting; Construction; Stationary Installations; Tank |
| HP |
1/3 |
| Housing Material |
Cast Iron |
| GPM |
25 gpm |
| Seal Material |
Buna-N |
| RPM |
3500/400 |
| Pump Design |
Rotary Vane |
| Self-Priming |
Yes |
| Seal Type |
Mechanical |
| Max. Viscosity |
200 SUS |
| Item |

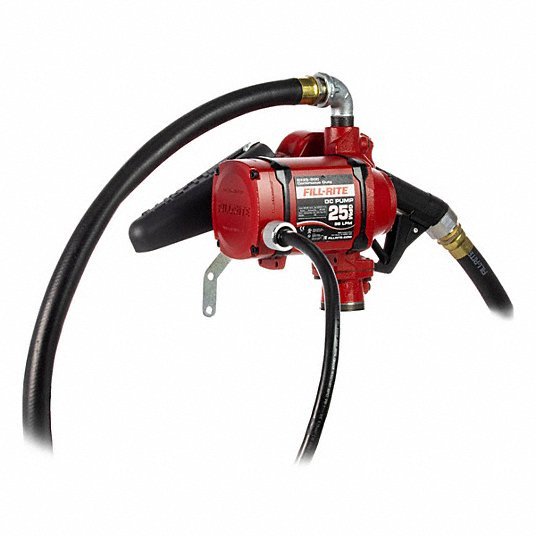

Fuel Transfer Pump |
| Duty Cycle |
Continuous |
| Standards |
ATEX , CE, cUL, IECEX |
| Features |
Automatic Power Down, High Flow Rates, Improved Suction Lift, Intelligent Tones, Light Weight, Low Amp Draw, Magnetic Replaceable Switch, Removable Power Cord |
| Nozzle Material |
Buna-N |
| Bearing Type |
Ball |
| Pressure Range |
0 to 21 psi |
| Nozzle Type |
Automatic |
| Compatible Fluids |
Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits |
| Metered |
No |
| Includes |
Cable, Discharge Hose, Nozzle |
| For Use With |
Biodiesel Blends Up to B20, Diesel Fuel, Gasohol Up to E15, Gasoline, Kerosene, Mineral Spirits |
| Bypass Valve |
Yes |
| Transfer Pump Application |
Agriculture, Barrel Mounting, Construction, Stationary Installations, Tank |
| Agency Compliance |
ATEX, CE, cULus, IECEx |
| Housing Material - Pumps |
Cast Iron |
| Max. Head - Pumps |
48 ft |
| Motor RPM |
8.75 RPM |
| Max. Flow Rate |
25 gpm |
| Nozzle Fluid Compatibility |
Diesel |
| Compatible Chemicals |
Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits |
| Rated Voltage |
24V DC |
| Max. Head Pressure |
25 psi |
| Mount Type |
Bung |
| Motor HP |
1/3 hp |
| Full Load Amps |
30.0 A |
| Nozzle Operation |
Automatic |
| Includes Discharge Hose |
Yes |
| Max. Outlet Pressure |
21 psi |
| Includes Nozzle |
Yes |
| For Media Type |
Biodiesel, Diesel, Gasohol, Gasoline, Kerosene, Mineral Spirits |
