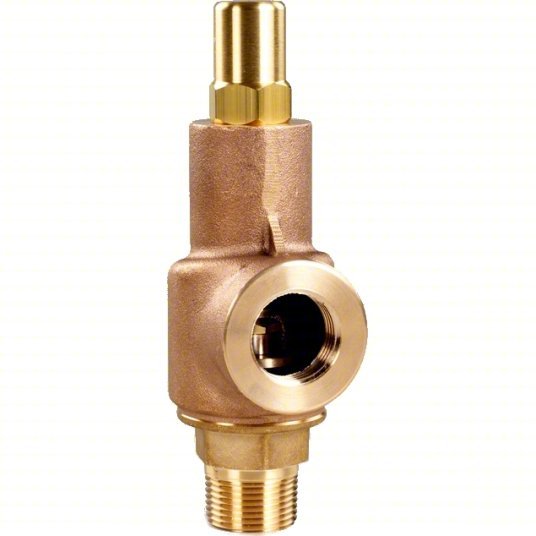

Aquatrol 69C1A1M2U1-100 Adjustable Relief Valve MNPT x FNPT, 1 in x 1 in, Bronze, 100 psi Max. Op Pressure

Adjustable Relief Valve, Body Material Bronze, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 1 in, Outlet Size 1 in, Factory Set Pressure 100 psi, Pressure Range 76 to 100 psi, 0 BtuH BtuH, Disc Material Bronze, Overall Height 7 3/8 in, Overall Length 7 3/8 in, Seat Material Bronze, Spring Material Stainless Steel, Temp. Range 0 Degrees to 450 Degrees F, Field Adjustable.This item is restricted for conveying or dispensing water for potable use (human consumption).

Body Material	Bronze
UPC	461175184627
Outlet Type	FNPT
Inlet Type	MNPT
Application	Liquids
Test Lever	No
Factory Set Pressure	100 psi
Temp. Range	0 Degrees to 450 Degrees F
Seat Material	Bronze
Disc Material	Bronze
Spring Material	316 Stainless Steel
Pressure Range	76 to 100 psi
BtuH	0 BtuH
Standards	Non-Code, Field Adjustable
Operating Temperature - Minimum	-60 Degrees F
Operating Pressure - Minimum	76 psi
Inlet Connection Gender	Male
Outlet Connection Type	NPT
ASME Section Code	Non-Code
Inlet Connection Type	NPT
Outlet Connection Gender	Female
For Media	Water
Operating Pressure - Maximum	100 psi
Operating Temperature - Maximum	406 Degrees F
