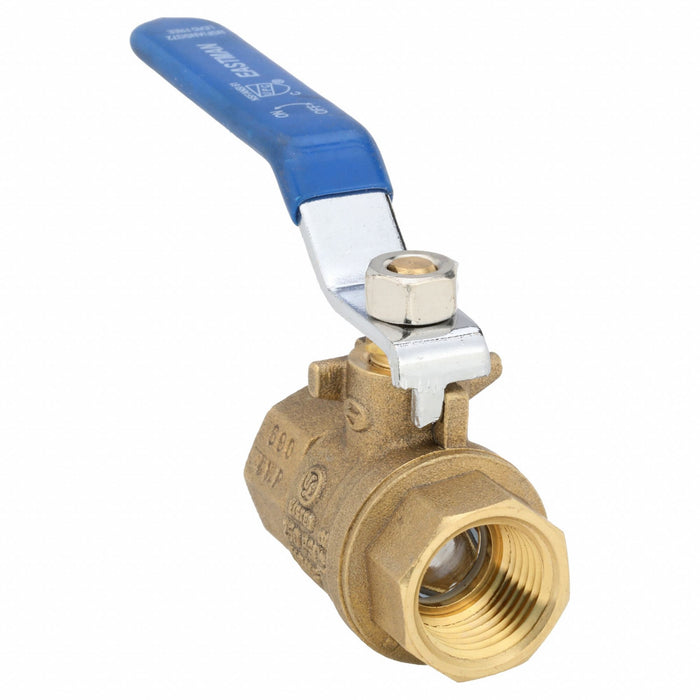

Approved Vendor 20045LF Brass Ball Valve 1/2 in

Approved Vendor 20045LF Manual Two-Way Ball Valve, 1/2 in, Brass, Straight, FIP x FIP, Full Port Ball Port

UPC: 091712426271 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: China | Shipping Weight: 0.45 lbs

$18.80 - $18.80
$18.80
$18.80 - $18.80
$18.80

Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam 150 psi, Ball Material Brass, Ball Port Style Full Port, Handle Type Lever, Connection Size 1/2 in, Valve Ways 2-Way, Seal Material Buna-N.

Body Material Brass
Ball Material Brass
Ball Port Style Full Port
Body Style Inline
Valve Body Style Straight
Valve Construction Two-Piece
Valve Ways 2-Way
Nominal Valve Size 1/2 in
Pipe Size 1/2 in
Connection Type IPS
Connection Gender - Side 1 Female
Connection Gender - Side 2 Female
Connection Size - Side 1 1/2 in
Connection Size - Side 2 1/2 in
For Media Water
Max. Pressure (CWP) 150 psi
Max. Pressure (Steam) 150 psi WSP
Operating Temperature 0 to 200 °F
Handle Type Lever
Handle Material PVC, Steel
Handle Color Blue
Stem Material Brass
Stem Type Blowout Resistant
Seat Material PTFE
Seal Material Buna-N
NSF Certifications NSF 61
Standards AB 1953, CSA, cUPC
Features Heavy Duty
