Apollo 7010527 Manual Two - Way Ball Valve 1 in, Bronze, Straight, FNPT x FNPT, 600 psi Max. Pressure (CWP) - KVM Tools Inc.KV2EEJ5

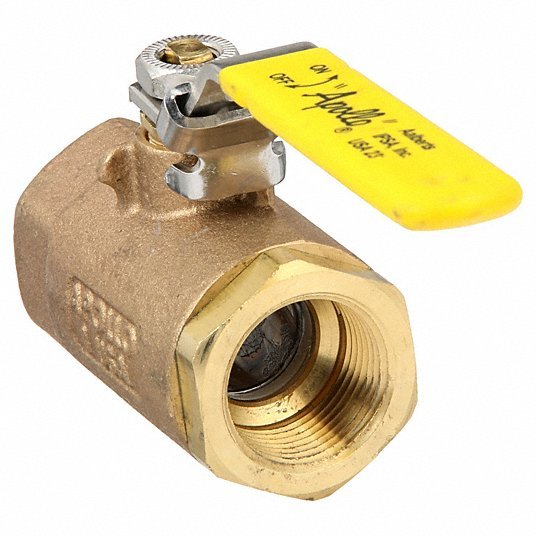

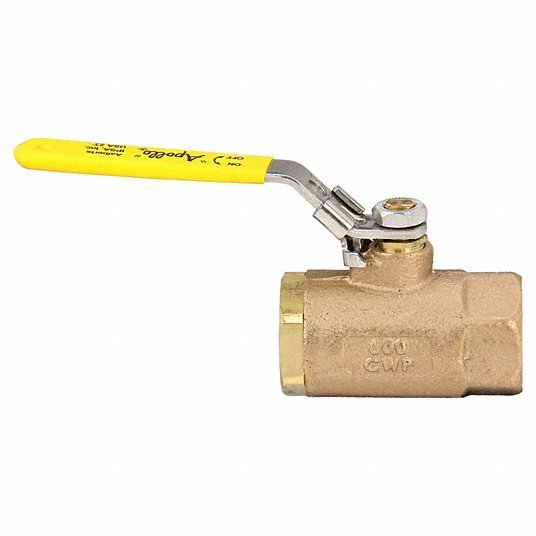

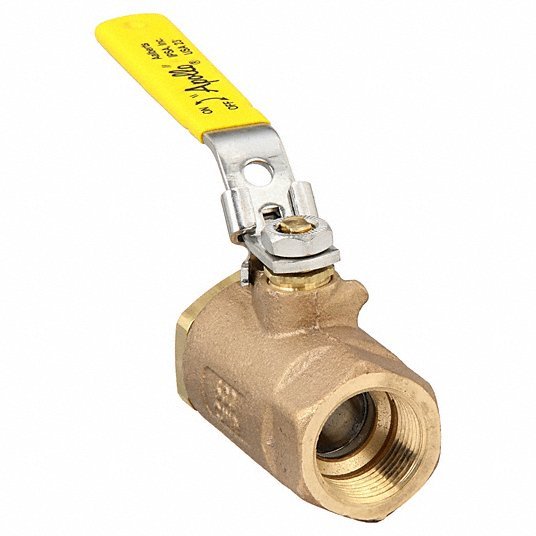

Apollo 7010527 Manual Two-Way Ball Valve 1 in, Bronze, Straight, FNPT x FNPT, 600 psi Max. Pressure (CWP)

UPC: 670750653568 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: United States | Shipping Weight: 1.7 lbs

$81.49 - $81.49
$81.49
$81.49 - $81.49
$81.49

Bronze ball valves have one inlet and one outlet port, are corrosion-resistant and suited for high-temperature applications. They're used in commercial and industrial applications, and they open and close with a handle.

Handle Material Steel
Seat Material RPTFE
Max. Pressure 600 PSI CWP
Handle Type Lever
Stem Type Blowout Proof
Body Style Inline
Item Ball Valve
Compliance MSS SP-110
Body Material Bronze
Standards ARRA Compliant, ASTM B584-C84400, Build America Buy America Act (BABA), Buy American Act (BAA), CRN
Ball Valve Product Group Manual
Valve Structure Two-Piece
Connection Type FNPT x FNPT
Temp. Range -20 Degrees to 450 Degrees F
Ball Material Chrome Plated Bronze
Stem Material Brass
Seal Material PTFE
Type Two Piece, Locking Handle
For Media Steam
Cleaned and Bagged Not Cleaned and Bagged
Ball Port Style Standard Port
Color - Valve Body Bronze
Color - Valve Handle Yellow
Coefficient of Volume (Cv) 0.01
Maximum Pressure - Combustible Gas Not Rated
Handle - Locking Locking
Connection Type - Side 2 NPT
Connection Gender - Side 1 Female
Vacuum Service Rating 29 in Hg
Operating Temperature - Maximum 500 Degrees F
Connection Type - Side 1 NPT
Maximum Pressure - Steam 150 PSI WSP
Valve Ways 2-Way
Operating Temperature - Minimum -20 Degrees F
Connection Gender - Side 2 Female
3-A Standard Compliance Not Rated
Valve Series 70
