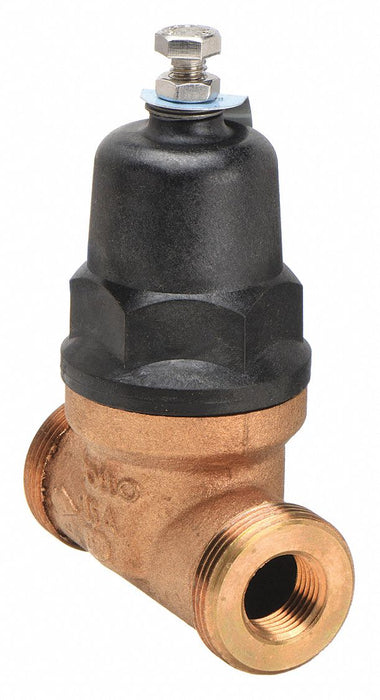

Apollo 36ELF12401T Water Pressure Reducing Valve, 3/4 in, Double Union FNPT, Lead Free Bronze, 15-75 psi

Apollo 36ELF12401T Water Pressure Reducing Valve, 3/4 in, Double Union FNPT, Lead Free Bronze, 15-75 psi

UPC: 670750685682 | Harmonization / Schedule B : 8481.10.0090

Country of Origin: United States | Shipping Weight: 2.25 lbs

$198.04 - $198.04
$198.04
$198.04 - $198.04
$198.04

Valve, Pressure Reducing, Material of Construction Lead Free Bronze, Inlet/Outlet 3/4 In., Double Union NPT Connection, Max. Working Pressure (PSI) 400, Adjustable Range 15-75 psi, Pressure Setting 50 psi, Max. Temp. (F) 180, Height (In.) 6, Length (In.) 5-1/2, Certification NSF/ANSI 61 SECTION 8 2010 ANNEX F & G CA AB1953, VT ACT 193, Standards ASSE 1003/CSA B356, Compliance ARRA

Connection Type Double Union x FNPT Thread
Body Material LF Bronze, UNS 89836
Max. Pressure 400 psig
Max. Temp. 180 Degrees F
Strainer No
Pressure Adjustment Range 15 to 75 psig
Material Lead Free Bronze
Standards ASSE 1003, Build America Buy America (BABA) Act, Buy American Act (BAA), CSA B356
Application Commercial Use, Institutional Use, Residential Use
Preset Pressure Settings 50 psi
Valve Type Standard
Connection Double Union FNPT
Material of Construction Lead Free Bronze
Seat Material EPDM
Disc Material EPDM
Factory Set Pressure 60 psi
Flow Rate - Continuous Maximum 48 gpm
Operating Pressure - Maximum 400 psi
Pilot Adjustment - Maximum 75 psi
Inlet Connection Type NPT
Operating Pressure - Minimum 15 psi
Fluid Temperature - Maximum 180 Degrees F
Coating/Lining NSF Listed Fusion Bonded Epoxy Lining and Coating
NSF Certifications for Food and Drinking Water NSF 61
Includes Strainer Strainer Included
Pilot Adjustment - Minimum 15 psi
For Media Water
Outlet Connection Type NPT
Country of Origin United States
