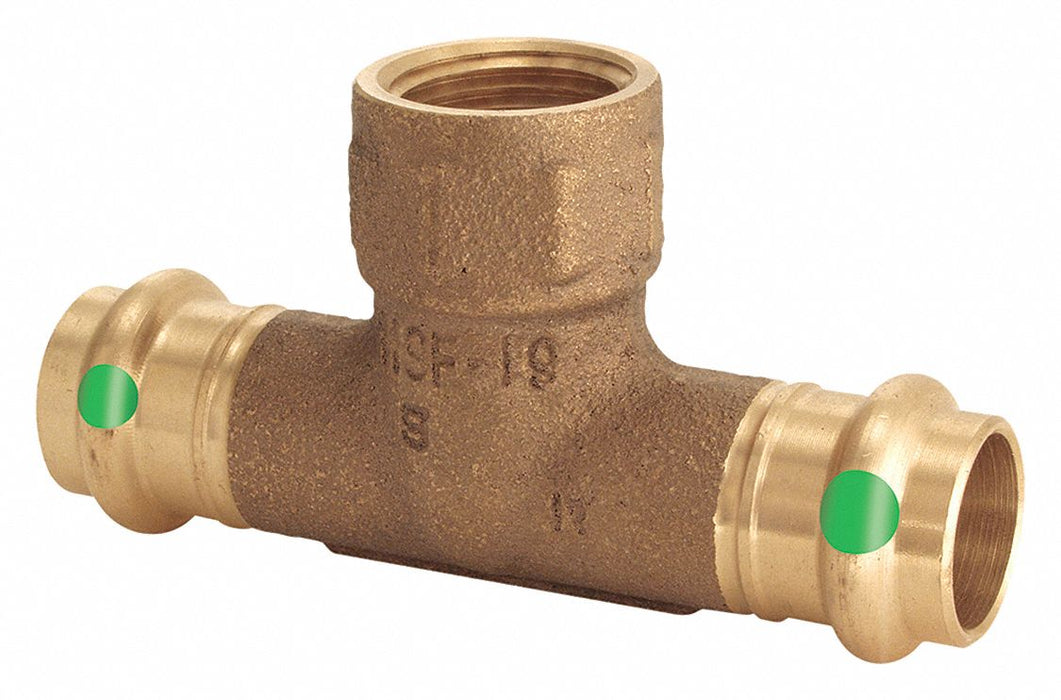

Viega Propress 79580 Crimp Tee Fitting, 1/2 in

Viega Propress 79580 Crimp Tee Fitting, 1/2 in Press-Fit x 1/2 in Press-Fit x 1/2 in FNPT, Bronze, EPDM, 200 psi

UPC: 691514795805 | Harmonization / Schedule B : 7412.20.0085

Country of Origin: Germany | Shipping Weight: 0.35 lbs

$28.28 - $28.28
$28.28
$28.28 - $28.28
$28.28

Crimp Tee Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side C Connection Type FNPT, Fitting Side A Copper Tube Size 1/2 in, Fitting Side B Copper Tube Size 1/2 in, Fitting Material Bronze, Includes Center Stop Dimple Center Stop, Fitting Side C Pipe Size 1/2 in, O-Ring Material EPDM, Specific Fitting Shape Adapter Tee, Overall Length 3 7/32 in, Maximum Operating Pressure 200 psi

Tube Fitting Material Bronze
Specific Fitting Shape Adapter Tee
Fitting Connection Type Press x Press x Female Pipe Thread
Max. Pressure 200 psi
Specific Pipe Fitting Shape Tee
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Tee
Pipe Fitting Connection Type Press x Press x Female Pipe Thread
Standards ASTM B75, ASTM B88
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Temp. Range 0 Degrees to 250 Degrees F
Fitting Side B Connection Type Press-Fit
Fitting Side C Connection Type FNPT
Maximum Operating Pressure 200 psi
Fitting Side A Connection Type Press-Fit
Maximum Operating Temperature 250 Degrees F
Application Potable Water
Fitting Material Bronze
O-Ring Material EPDM
Minimum Operating Temperature 0 Degrees F
Fitting Shape Tee
Fitting Side 1 Connection Type Press-fit
Connector Type Adapter
For Media Type Potable Water
Fitting Side 2 Connection Type Press-fit
Operating Temperature - Minimum 0 Degrees F
Fitting Side 3 Connection Type FNPT
Operating Pressure - Maximum 200 psi
Operating Temperature - Maximum 250 Degrees F
Includes Center Stop Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
