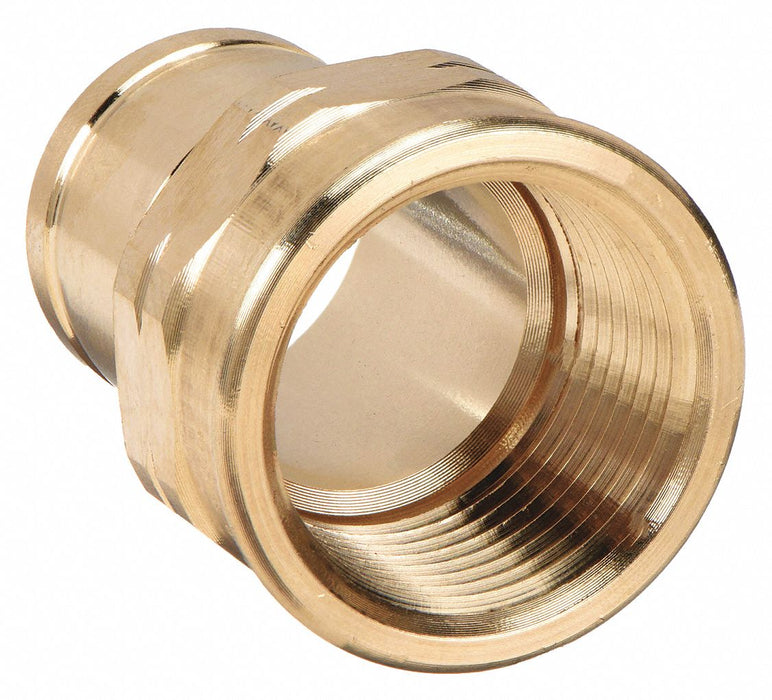

Viega Propress 79445 Crimp Adapter Fitting, 3/4 in

Viega Propress 79445 Crimp Adapter Fitting, Straight, 3/4 in FTG x 3/4 in FNPT, Bronze, EPDM, 200 psi

UPC: 691514794457 | Harmonization / Schedule B : 7412.20.0085

Country of Origin: Germany | Shipping Weight: 0.20 lbs

$33.45 - $33.45
$33.45
$33.45 - $33.45
$33.45

Crimp Adapter Fitting, Application Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 1 13/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F

Tube Fitting Material Bronze
Specific Fitting Shape Straight Adapter
Fitting Connection Type Street x Female Pipe Thread
Max. Pressure 200 psi
Specific Pipe Fitting Shape Adapter
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Adapter
Pipe Fitting Connection Type Street x Female Pipe Thread
Standards ABS, CRN, CRN 0A14541.5 A/B/C, CSA, CSA MSE-13, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1037, NFPA 13, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL Listed, ULC/ORD 213
Temp. Range 0 Degrees to 250 Degrees F
O-Ring Material EPDM
Fitting Material Bronze
Fitting Side A Connection Type FTG
Fitting Shape Straight
Application Potable Water
Maximum Operating Temperature 250 Degrees F
Fitting Side B Connection Type FNPT
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
Fitting Side 2 Connection Type FNPT
Operating Temperature - Minimum 0 Degrees F
Operating Temperature - Maximum 250 Degrees F
Fitting Side 1 Connection Type FTG
Operating Pressure - Maximum 200 psi
Connector Type Adapter
For Media Type Potable Water
Center Stop Type Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
