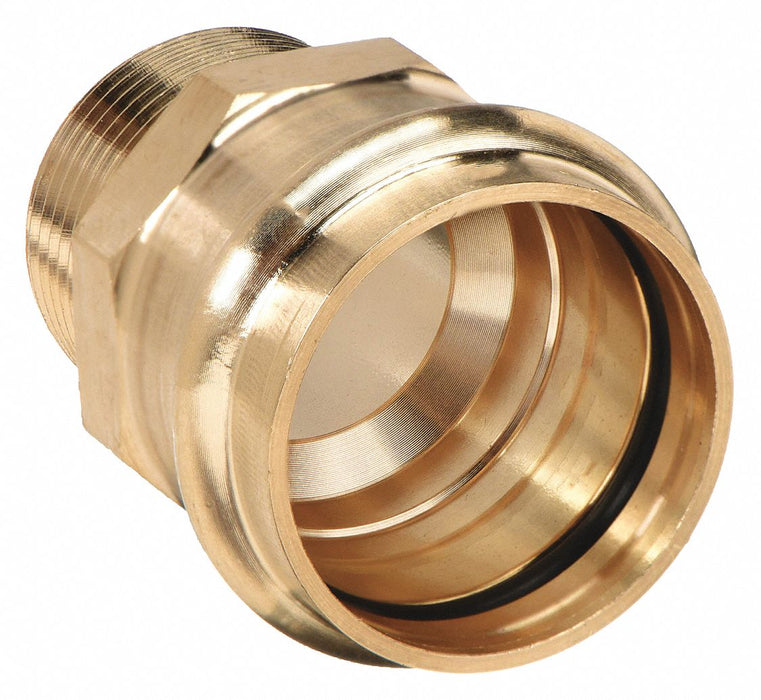

Viega Propress 79215 Crimp Adapter Fitting, 1/2 in

Viega Propress 79215 Crimp Adapter Fitting, Straight, 1/2 in Press-Fit x 1/2 in MNPT, Bronze, EPDM, 200 psi

UPC: 691514792156 | Harmonization / Schedule B : 7412.20.0085

Country of Origin: Germany | Shipping Weight: 0.10 lbs

$5.88 - $5.88
$5.88
$5.88 - $5.88
$5.88

Crimp Adapter Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 1/2 in, Fitting Material Bronze, Fitting Side B Pipe Size 1/2 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 1 23/32 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Fitting Material Bronze
Specific Fitting Shape Straight Adapter
Fitting Connection Type Press x Male Pipe Thread
Pipe Fitting Connection Type Press x Male Pipe Thread
Basic Pipe Fitting Shape Adapter
Basic Pipe Fitting Material Metal
Max. Pressure 200 psi
Standards ASTM B75, ASTM B88
Temp. Range 0 Degrees to 250 Degrees F
Specific Pipe Fitting Shape Adapter
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Maximum Operating Temperature 250 Degrees F
O-Ring Material EPDM
Maximum Operating Pressure 200 psi
Fitting Side B Connection Type MNPT
Application Potable Water
Fitting Side A Connection Type Press-Fit
Minimum Operating Temperature 0 Degrees F
Fitting Shape Straight
Fitting Material Bronze
Operating Temperature - Maximum 250 Degrees F
Fitting Side 2 Connection Type MNPT
Operating Temperature - Minimum 0 Degrees F
For Media Type Potable Water
Operating Pressure - Maximum 200 psi
Fitting Side 1 Connection Type Press-fit
Connector Type Adapter
Center Stop Type Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
