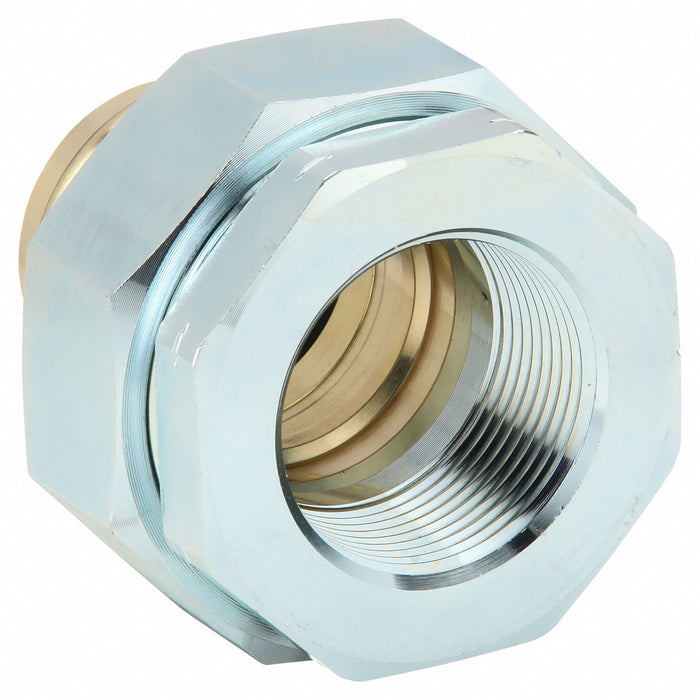

Viega Propress 79160 Di-Electric Union, 3/4 in

Viega Propress 79160 Di-Electric Union Crimp Fitting, 3/4 in Press-Fit x 3/4 in FNPT, Bronze, EPDM, 200 psi

UPC: 691514791609 | Harmonization / Schedule B : 7412.20.0085

Country of Origin: Germany | Shipping Weight: 0.55 lbs

$83.38 - $83.38
$83.38
$83.38 - $83.38
$83.38

Crimp Union Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape Di-Electric Union, Overall Length 2 9/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F

Fitting Connection Type Press x Female Pipe Thread
Max. Pressure 200 psi
Tube Fitting Material Bronze
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Union
Specific Pipe Fitting Shape Dielectric Union
Specific Fitting Shape Dielectric Union
Pipe Fitting Connection Type Press x Female Pipe Thread
Fitting Side A Connection Type Press-Fit
Maximum Operating Pressure 200 psi
Application Potable Water
Minimum Operating Temperature 0 Degrees F
O-Ring Material EPDM
Fitting Side B Connection Type FNPT
Maximum Operating Temperature 250 Degrees F
Fitting Shape Di-Electric Union
Fitting Material Bronze
Operating Temperature - Minimum 0 Degrees F
Connector Type Union
Fitting Side 1 Connection Type Press-fit
Operating Temperature - Maximum 250 Degrees F
Fitting Side 2 Connection Type FNPT
For Media Type Potable Water
Operating Pressure - Maximum 200 psi
Center Stop Type Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
