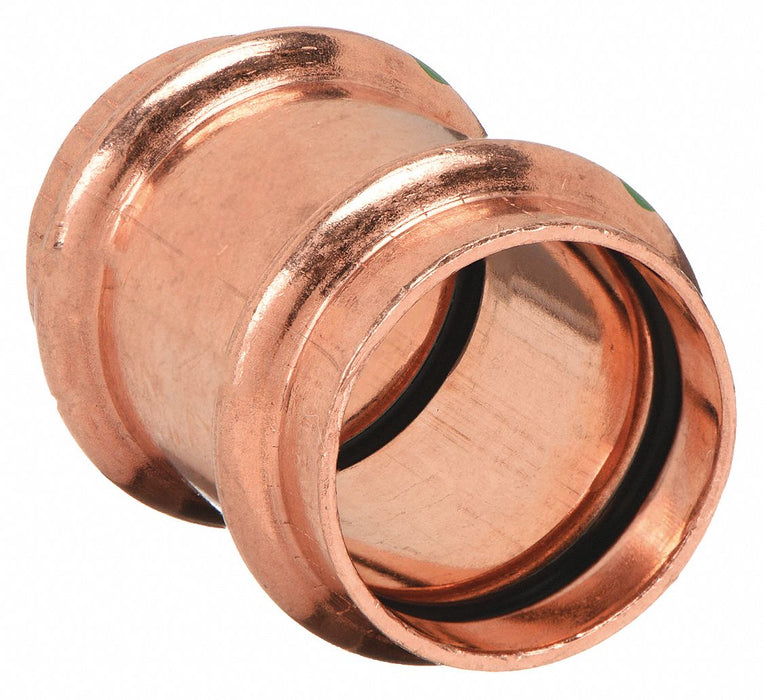

Viega Propress 78182 Crimp Coupling Fitting

Viega Propress 78182 Crimp Coupling Fitting, Straight, 1 in CTS x 1 in CTS, Press-fit x Press-fit

UPC: 691514781822 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: United States | Shipping Weight: 0.17 lbs

$18.48 - $18.48
$18.48
$18.48 - $18.48
$18.48

Crimp Coupling Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Straight Coupling, Overall Length 1 31/32 in, Includes Center Stop No Center Stop, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi

Tube Fitting Material Copper
Specific Fitting Shape Straight Coupling
Fitting Connection Type Press x Press
Basic Pipe Fitting Material Metal
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Pipe Fitting Connection Type Press x Press
Basic Pipe Fitting Shape Coupling
Max. Pressure 200 psi
Specific Pipe Fitting Shape Coupling
Standards ASTM B75, ASTM B88
Temp. Range 0 Degrees to 250 Degrees F
Maximum Operating Pressure 200 psi
Fitting Side B Connection Type Press-Fit
Minimum Operating Temperature 0 Degrees F
Fitting Shape Straight
Maximum Operating Temperature 250 Degrees F
Fitting Material Copper
Fitting Side A Connection Type Press-Fit
Application Potable Water
O-Ring Material EPDM
Includes Center Stop No Center Stop
Fitting Side 2 Connection Type Press-fit
Connector Type Coupling
For Media Type Potable Water
Operating Temperature - Minimum 0 Degrees F
Center Stop Type No Center Stop
Operating Temperature - Maximum 250 Degrees F
Operating Pressure - Maximum 200 psi
Fitting Side 1 Connection Type Press-fit
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
