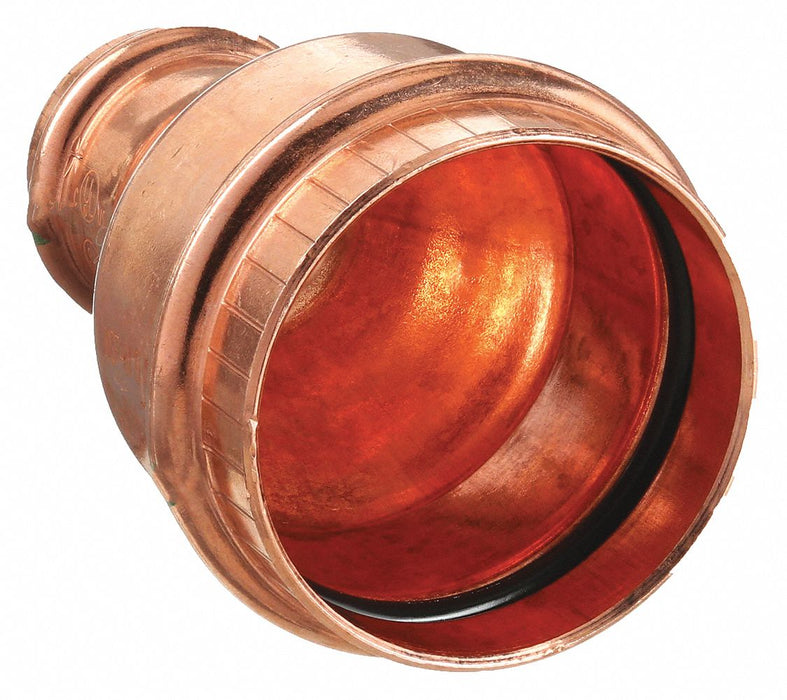

Viega Propress 78147 Crimp Reducer Fitting

Viega Propress 78147 Crimp Reducer Fitting, 3/4 in CTS x 1/2 in CTS, Press-fit x Press-fit, Copper

UPC: 691514781471 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: United States | Shipping Weight: 0.12 lbs

$21.16 - $21.16
$21.16
$21.16 - $21.16
$21.16

Crimp Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 3/4 in, Fitting Side B Copper Tube Size 1/2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Straight Reducing Connector, Overall Length 2 1/16 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F

Tube Fitting Material Copper
Specific Fitting Shape Straight Reducing Connector
Fitting Connection Type Press x Press
Pipe Fitting Connection Type Press x Press
Basic Pipe Fitting Shape Reducer
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Temp. Range 0 Degrees to 250 Degrees F
Standards ASTM B75, ASTM B88
Max. Pressure 200 psi
Specific Pipe Fitting Shape Reducer
Basic Pipe Fitting Material Metal
Fitting Shape Straight
Fitting Side B Connection Type Press-Fit
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
O-Ring Material EPDM
Maximum Operating Temperature 250 Degrees F
Fitting Material Copper
Application Potable Water
Fitting Side A Connection Type Press-Fit
Connector Type Reducer
Operating Temperature - Minimum 0 Degrees F
Operating Pressure - Maximum 200 psi
Fitting Side 2 Connection Type Press-fit
Operating Temperature - Maximum 250 Degrees F
Fitting Side 1 Connection Type Press-fit
For Media Type Potable Water
Center Stop Type Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
