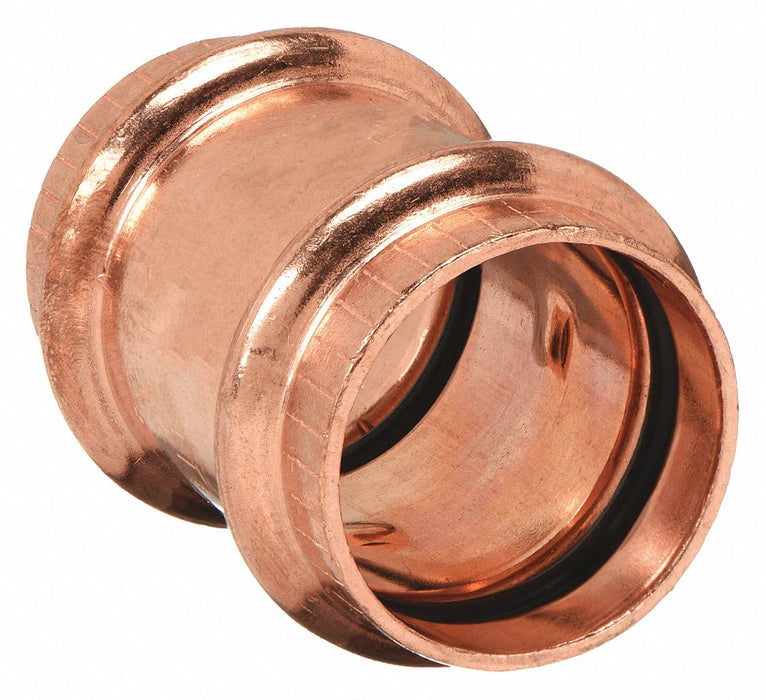

Viega Propress 78072 Crimp Coupling Fitting

Viega Propress 78072 Crimp Coupling Fitting, Straight, 2 in CTS x 2 in CTS, Press-fit x Press-fit, with Stop

UPC: 691514780726 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: Germany | Shipping Weight: 0.65 lbs

$41.22 - $41.22
$41.22
$41.22 - $41.22
$41.22

Crimp Coupling Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 2 in, Fitting Side B Copper Tube Size 2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Straight Coupling, Overall Length 3 5/16 in, Includes Center Stop Dimple Center Stop, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi

Tube Fitting Material Copper
Specific Fitting Shape Straight Coupling
Fitting Connection Type Press x Press
Standards ASTM B75, ASTM B88
Max. Pressure 200 psi
Basic Pipe Fitting Material Metal
Specific Pipe Fitting Shape Coupling
Basic Pipe Fitting Shape Coupling
Temp. Range 0 Degrees to 250 Degrees F
Pipe Fitting Connection Type Press x Press
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Maximum Operating Pressure 200 psi
Fitting Side A Connection Type Press-Fit
Maximum Operating Temperature 250 Degrees F
Application Potable Water
Minimum Operating Temperature 0 Degrees F
Includes Center Stop Dimple Center Stop
O-Ring Material EPDM
Fitting Side B Connection Type Press-Fit
Fitting Shape Straight
Fitting Material Copper
Fitting Side 2 Connection Type Press-fit
Operating Pressure - Maximum 200 psi
Operating Temperature - Maximum 250 Degrees F
Operating Temperature - Minimum 0 Degrees F
For Media Type Potable Water
Center Stop Type Dimple Center Stop
Fitting Side 1 Connection Type Press-fit
Connector Type Coupling
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
