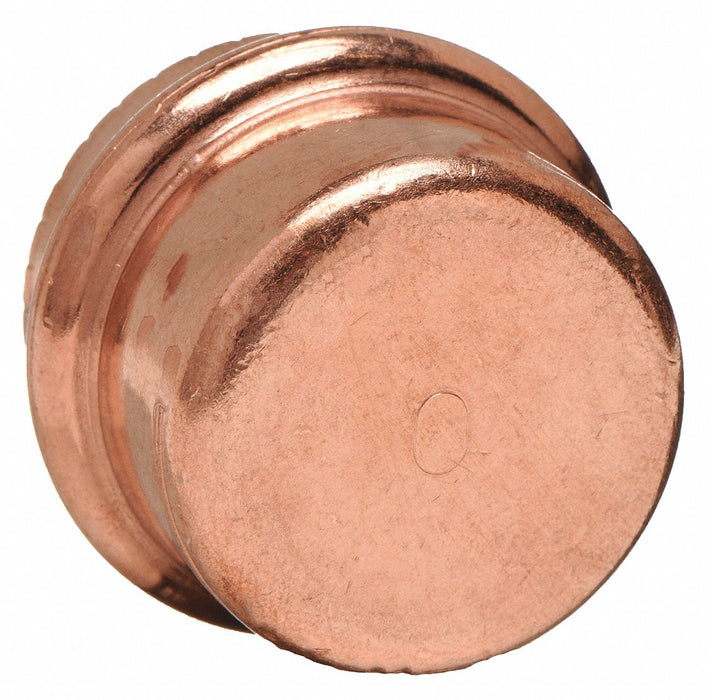

Viega Propress 77712 Crimp Fitting Cap

Viega Propress 77712 Crimp Fitting Cap, 1/2 in CTS, Press-fit, Copper, EPDM O-Ring

UPC: 691514777122 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: Germany | Shipping Weight: 0.05 lbs

$11.98 - $11.98
$11.98
$11.98 - $11.98
$11.98

Crimp Fitting Cap, Application Potable Water, Compatible Copper Tube Size 1/2 in, Fitting Connection Type Press-fit, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Cap, Overall Length 15/16 in, Includes Center Stop Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards CRN, CSA, FM, IAPMO (UPC), ICC, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL Listed, Minimum Operating Temperature 0 Degrees F

Tube Fitting Material Copper
Specific Fitting Shape Cap
Fitting Connection Type Press-fit
Basic Pipe Fitting Shape Cap
Max. Pressure 200 psi
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Basic Pipe Fitting Material Metal
Standards CRN, CSA, FM, IAPMO (UPC), ICC, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL Listed
Temp. Range 0 Degrees to 250 Degrees F
Pipe Fitting Connection Type Press
Specific Pipe Fitting Shape Cap
Minimum Operating Temperature 0 Degrees F
Maximum Operating Temperature 250 Degrees F
Fitting Shape Cap
Maximum Operating Pressure 200 psi
O-Ring Material EPDM
Fitting Material Copper
Application Potable Water
Operating Temperature - Maximum 250 Degrees F
Operating Pressure - Maximum 200 psi
Operating Temperature - Minimum 0 Degrees F
For Media Type Potable Water
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
