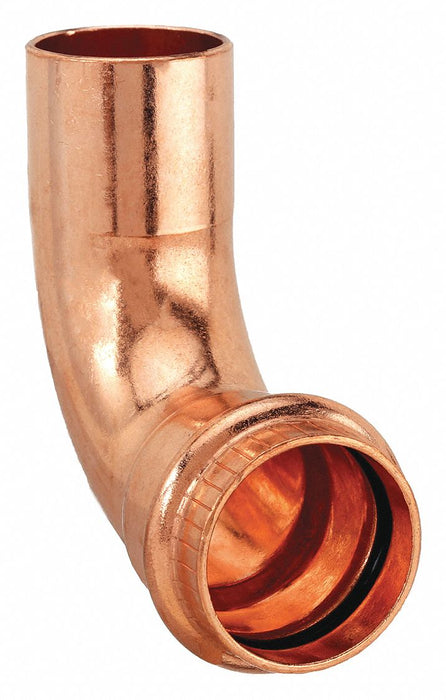

Viega Propress 77052 Crimp Elbow Fitting, 90° Elbow, 3/4 in CTS x 3/4 in CTS, Press-fit x FTG, Copper

Viega Propress 77052 Crimp Elbow Fitting, 90° Elbow, 3/4 in CTS x 3/4 in CTS, Press-fit x FTG, Copper

UPC: 691514770529 | Harmonization / Schedule B : 7412.20.0035

Country of Origin: United States | Shipping Weight: 0.16 lbs

$8.89 - $8.89
$8.89
$8.89 - $8.89
$8.89

Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size 3/4 in, Fitting Side B Copper Tube Size 3/4 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Street Elbow Adapter, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Fitting Material Copper
Specific Fitting Shape 90 Degrees Street Elbow Adapter
Fitting Connection Type Press x Street
Pipe Fitting Connection Type Press x Street
Standards ASTM B75, ASTM B88
Specific Pipe Fitting Shape 90 Degrees Elbow
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Material Metal
Max. Pressure 200 psi
Basic Pipe Fitting Shape Elbow
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Maximum Operating Pressure 200 psi
Fitting Shape 90 Degrees Elbow
Fitting Side A Connection Type Press-Fit
Maximum Operating Temperature 250 Degrees F
Minimum Operating Temperature 0 Degrees F
O-Ring Material EPDM
Fitting Side B Connection Type FTG
Application Potable Water
Fitting Material Copper
Operating Temperature - Maximum 250 Degrees F
Connector Type Adapter
Operating Temperature - Minimum 0 Degrees F
For Media Type Potable Water
Fitting Side 1 Connection Type Press-fit
Operating Pressure - Maximum 200 psi
Center Stop Type Dimple Center Stop
Fitting Side 2 Connection Type FTG
