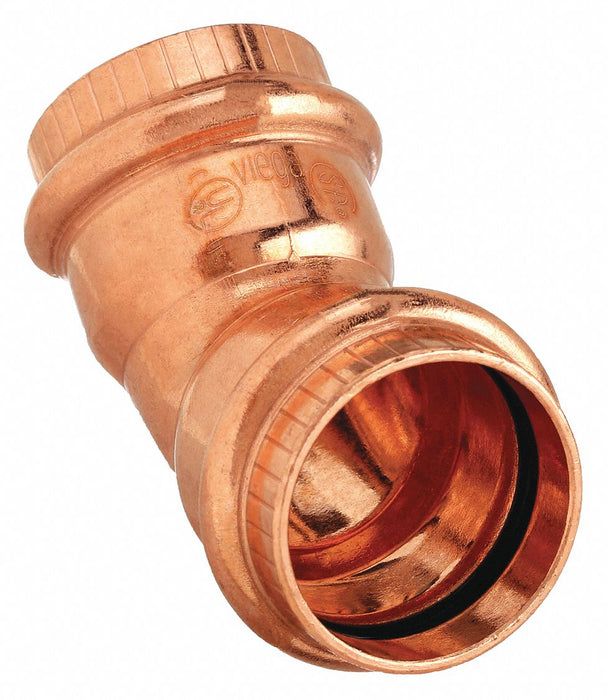

Viega ProPress 77023 Crimp Elbow Fitting, 45° Elbow, 3/4 in CTS x 3/4 in CTS size, Press-fit x Press-fit

Viega ProPress 77023 Crimp Elbow Fitting, 45° Elbow, 3/4 in CTS x 3/4 in CTS size, Press-fit x Press-fit

UPC: 691514770239 | Harmonization / Schedule B : 7412.20.0090

Country of Origin: Germany | Shipping Weight: 0.15 lbs

$7.51 - $7.51
$7.51
$7.51 - $7.51
$7.51

These press tube fittings are suitable for plumbing applications with potable water. They crimp onto tubing and have a sealing O-ring to ensure a secure, leaktight connection.

Tube Fitting Material Copper
Specific Fitting Shape 45 Degrees Elbow
Fitting Connection Type Press x Press
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Pipe Fitting Connection Type Press x Press
Standards ASTM B75, ASTM B88
Basic Pipe Fitting Material Metal
Temp. Range 0 Degrees to 250 Degrees F
Specific Pipe Fitting Shape 45 Degrees Elbow
Max. Pressure 200 psi
Basic Pipe Fitting Shape Elbow
Minimum Operating Temperature 0 Degrees F
Fitting Side A Connection Type Press-Fit
Fitting Shape 45 Degrees Elbow
Maximum Operating Temperature 250 Degrees F
Fitting Material Copper
Maximum Operating Pressure 200 psi
Fitting Side B Connection Type Press-Fit
Application Potable Water
O-Ring Material EPDM
Operating Temperature - Minimum 0 Degrees F
Fitting Side 1 Connection Type Press-fit
Operating Pressure - Maximum 200 psi
For Media Type Potable Water
Fitting Side 2 Connection Type Press-fit
Operating Temperature - Maximum 250 Degrees F
Connector Type Coupling
Center Stop Type Dimple Center Stop
Country of Origin Germany
