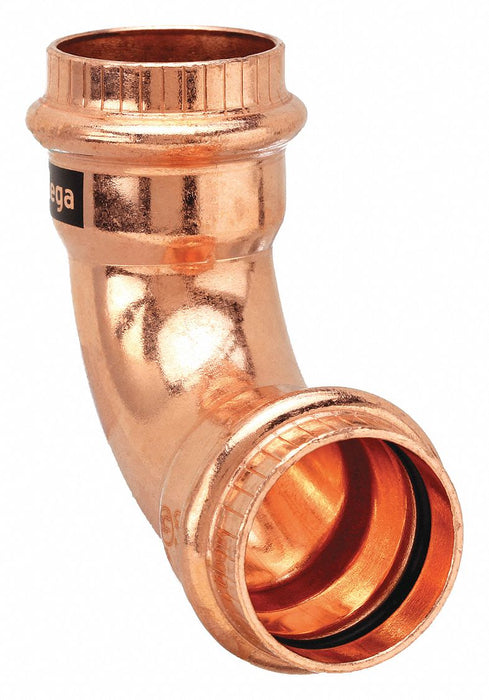

Viega Propress 77022 Crimp Elbow Fitting, 90° Elbow, 3/4 in CTS x 3/4 in CTS, Press-fit x Press-fit

Viega Propress 77022 Crimp Elbow Fitting, 90° Elbow, 3/4 in CTS x 3/4 in CTS, Press-fit x Press-fit

UPC: 691514770222 | Harmonization / Schedule B : 7412.20.0090

Country of Origin: United States | Shipping Weight: 0.17 lbs

$8.33 - $8.33
$8.33
$8.33 - $8.33
$8.33

Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 3/4 in, Fitting Side B Copper Tube Size 3/4 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Elbow, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Fitting Material Copper
Specific Fitting Shape 90 Degrees Elbow
Fitting Connection Type Press x Press
Standards ASTM B75, ASTM B88
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Material Metal
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Pipe Fitting Connection Type Press x Press
Specific Pipe Fitting Shape 90 Degrees Elbow
Max. Pressure 200 psi
Basic Pipe Fitting Shape Elbow
Minimum Operating Temperature 0 Degrees F
Application Potable Water
Fitting Side B Connection Type Press-Fit
Maximum Operating Temperature 250 Degrees F
Fitting Material Copper
Maximum Operating Pressure 200 psi
O-Ring Material EPDM
Fitting Shape 90 Degrees Elbow
Fitting Side A Connection Type Press-Fit
Fitting Side 1 Connection Type Press-fit
Operating Pressure - Maximum 200 psi
Operating Temperature - Maximum 250 Degrees F
Operating Temperature - Minimum 0 Degrees F
For Media Type Potable Water
Fitting Side 2 Connection Type Press-fit
Center Stop Type Dimple Center Stop
Connector Type Coupling
