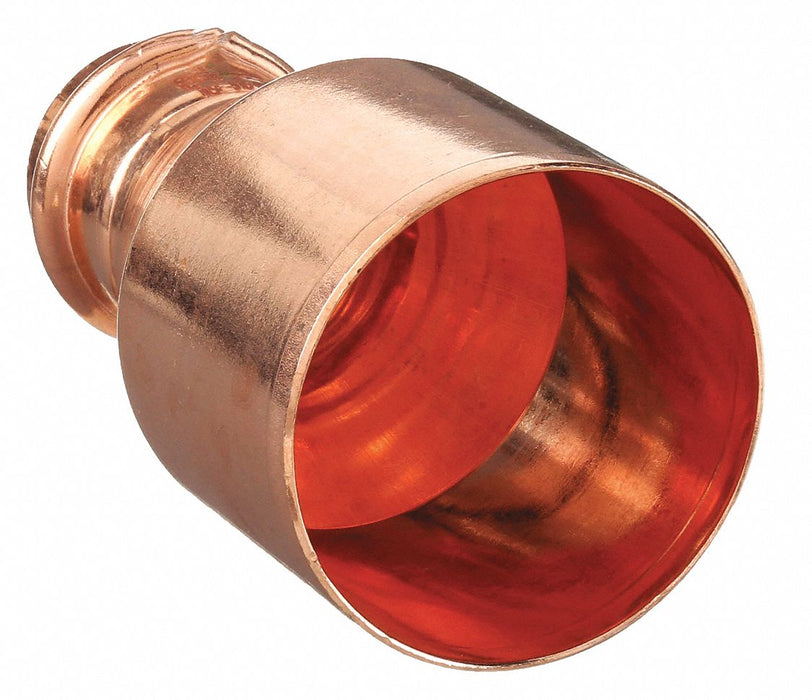

Viega Propress 14543 Crimp Reducer Fitting

Viega Propress 14543 Crimp Reducer Fitting, Straight, 1-1/2 x 3/4 in CTS, Press-fit x FTG, Copper

UPC: 691514145433 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: Germany | Shipping Weight: 0.25 lbs

$27.84 - $27.84
$27.84
$27.84 - $27.84
$27.84

Crimp Fitting, Application Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Side B Copper Tube Size 3/4 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape Straight Reducing Adapter, Overall Length 3 15/32 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F

Tube Fitting Material Copper
Specific Fitting Shape Straight Reducing Adapter
Fitting Connection Type Street x Press
Specific Pipe Fitting Shape Reducer
Basic Pipe Fitting Material Metal
Temp. Range 0 Degrees to 250 Degrees F
Basic Pipe Fitting Shape Reducer
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Standards ASTM B75, ASTM B88
Max. Pressure 200 psi
Pipe Fitting Connection Type Street x Press
Maximum Operating Pressure 200 psi
Minimum Operating Temperature 0 Degrees F
Fitting Side B Connection Type Press-Fit
Application Potable Water
Maximum Operating Temperature 250 Degrees F
Fitting Side A Connection Type FTG
O-Ring Material EPDM
Fitting Shape Straight
Fitting Material Copper
Fitting Side 2 Connection Type FTG
Fitting Side 1 Connection Type Press-fit
Operating Pressure - Maximum 200 psi
For Media Type Potable Water
Operating Temperature - Maximum 250 Degrees F
Connector Type Adapter
Operating Temperature - Minimum 0 Degrees F
Center Stop Type Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin Germany
