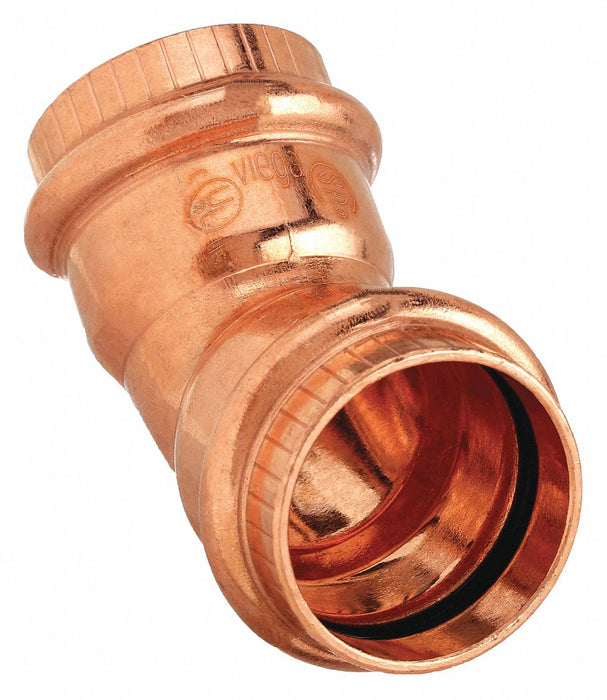

Viega 77038 45 Degree Elbow Copper Press Fitting, 1-1/2 in

Viega 77038 45 Degree Elbow Copper, Press-Fit x Press-Fit, 1-1/2 in x 1-1/2 in Copper Tube Size

UPC: 691514770383 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: United States | Shipping Weight: 0.45 lbs

$51.95 - $51.95
$51.95
$51.95 - $51.95
$51.95

Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Side B Copper Tube Size 1 1/2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 45 Degrees Elbow, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Fitting Material Copper
Specific Fitting Shape 45 Degrees Elbow
Fitting Connection Type Press x Press
Specific Pipe Fitting Shape 45 Degrees Elbow
Pipe Fitting Connection Type Press x Press
Max. Pressure 200 psi
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Basic Pipe Fitting Shape Elbow
Basic Pipe Fitting Material Metal
Standards ASTM B75, ASTM B88
Temp. Range 0 Degrees to 250 Degrees F
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
O-Ring Material EPDM
Maximum Operating Temperature 250 Degrees F
Fitting Material Copper
Fitting Shape 45 Degrees Elbow
Fitting Side B Connection Type Press-Fit
Application Potable Water
Fitting Side A Connection Type Press-Fit
Fitting Side 1 Connection Type Press-fit
Operating Temperature - Minimum 0 Degrees F
Operating Temperature - Maximum 250 Degrees F
Operating Pressure - Maximum 200 psi
For Media Type Potable Water
Fitting Side 2 Connection Type Press-fit
Center Stop Type Dimple Center Stop
Connector Type Coupling
Restrictions This product has been certified by a third party to be compliant with the Safe Drinking Water Act requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
