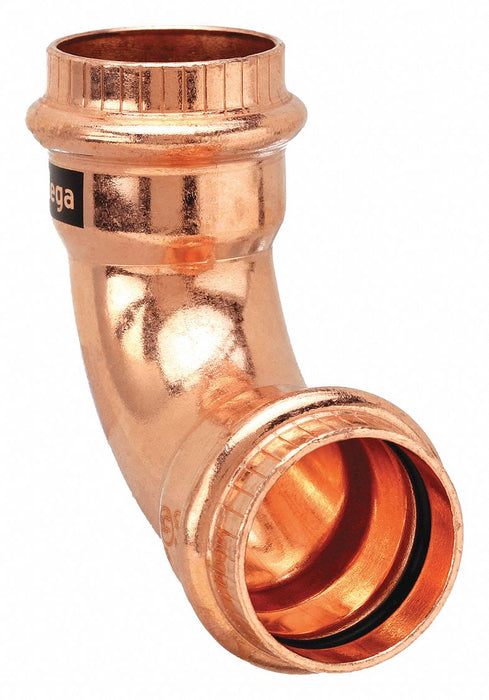

Viega 77037 90 Degree Elbow Copper, 1-1/2 in Press-Fit

Viega 77037 90 Degree Elbow Copper, Press-Fit x Press-Fit, 1-1/2 in x 1-1/2 in Copper Tube Size

UPC: 691514770376 | Harmonization / Schedule B : 7412.10.0000

Country of Origin: United States | Shipping Weight: 0.50 lbs

$59.63 - $59.63
$59.63
$59.63 - $59.63
$59.63

Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Side B Copper Tube Size 1 1/2 in, Fitting Material Copper, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Elbow, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88

Tube Fitting Material Copper
Specific Fitting Shape 90 Degrees Elbow
Fitting Connection Type Press x Press
Max. Pressure 200 psi
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Elbow
Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Pipe Fitting Connection Type Press x Press
Specific Pipe Fitting Shape 90 Degrees Elbow
Standards ASTM B75, ASTM B88
Temp. Range 0 Degrees to 250 Degrees F
Fitting Material Copper
Minimum Operating Temperature 0 Degrees F
Maximum Operating Pressure 200 psi
Fitting Side B Connection Type Press-Fit
Maximum Operating Temperature 250 Degrees F
Fitting Shape 90 Degrees Elbow
O-Ring Material EPDM
Application Potable Water
Fitting Side A Connection Type Press-Fit
Fitting Side 1 Connection Type Press-fit
For Media Type Potable Water
Operating Temperature - Maximum 250 Degrees F
Fitting Side 2 Connection Type Press-fit
Operating Pressure - Maximum 200 psi
Operating Temperature - Minimum 0 Degrees F
Connector Type Coupling
Center Stop Type Dimple Center Stop
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
