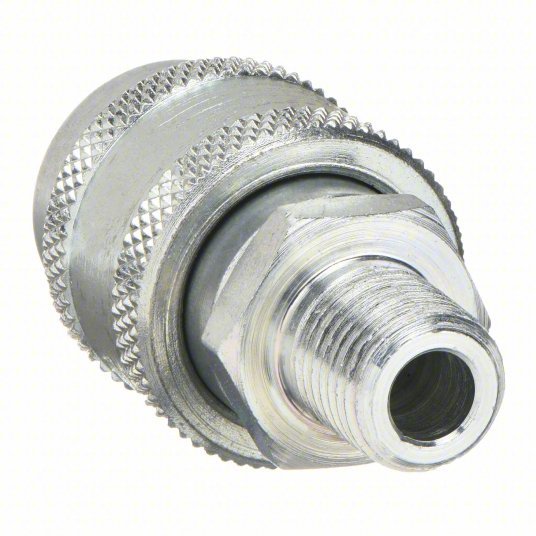

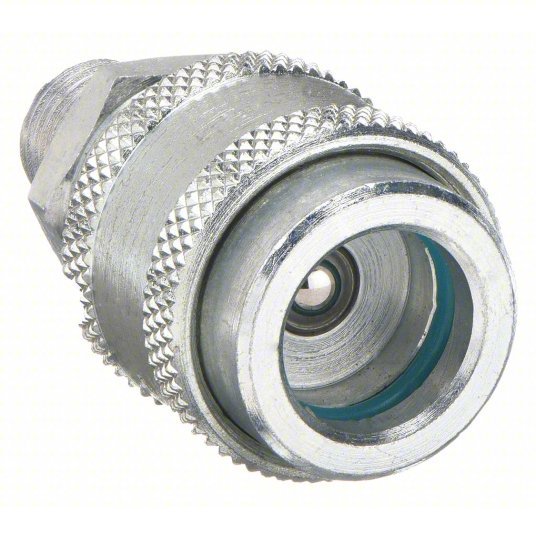

Parker 3050-3 Hydraulic Quick Connect Hose Coupling 3/8 in Coupling Size, Steel, 22.71 lpm Max. Flow Rate

Hydraulic Quick Connect Hose Coupling, Socket, 3000 Series, Steel, Coupling Size 3/8 in, Male, Max. Working Pressure @ 70 F 10,000 psi, Max. Flow Rate 22.71 lpm

Quick Coupler Type	Hydraulic Coupler Body
Coupler Interchange Type	3000
Connection Type	NPTF
Seal Material	Polyurethane
Coupler Flow Rate	12.0 gpm
Max. Pressure	10,000 psi
Coupler Body Material	Steel
Sleeve Material	Steel
Coupler Finish	Zinc Plated
Series	3000
For Use With	Parker 3000 Series
Body Material	Steel
Coupling Locking Type	Sleeve
Operating Temp. Range	-22 Degrees to 238 Degrees F
Coupler Connection Type	MNPT
Valve Design	Ball
Locking Mechanism	Threaded
Pioneer Interchange	3050-3
Parker Interchange	3050-3
Hansen Interchange	WA-56527-00
Valve Type	Ball
Coupling Component	Socket
Snap-Tite Interchange	76C6-6M
Fitting Type	Male NPTF
Finish/Coating	Plain
Hose Fitting Gender	Male
Max. Working Pressure @ 70 F	10,000 psi
Max. Flow Rate	22.71 lpm
Includes Shut Off	No
Includes Valve	Yes
Includes Bearing	No
