McMaster 7739K178 High-Pressure Galvanized Steel Pipe Fitting Union Straight Connector, 1-1/2 NPT Female

McMaster 7739K178 High-Pressure Galvanized Steel Pipe Fitting Union Straight Connector, 1-1/2 NPT Female

UPC: | Harmonization / Schedule B : 730799.2000

Country of Origin: United States | Shipping Weight: 3.602 lbs

$106.28 - $106.28
$106.28
$106.28 - $106.28
$106.28

A galvanized finish gives these fittings better corrosion resistance than our plain steel high-pressure fittings. Also known as Pressure Class 3000 fittings, they have excellent strength to handle high-pressure applications.

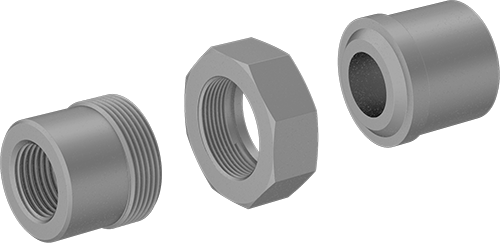

Union connectors separate into three pieces so you can access your line without unthreading pipe connections.

For Use With Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water
Shape Straight
Type Connector, Union
Body Shape Hex
Pressure Class 3000
Fabrication Forged
Connection Type Pipe
Connection Style Threaded
Connection NPT Female
Pipe Size 1 1/2
Dash Size 24
Length 3 3/64"
Hex Width 3 27/64"
Maximum Pressure 3,000 psi @ 72° F
Maximum Steam Pressure 300 psi @ 360° F
Material Galvanized Steel
For Pipe Schedule 160
Specifications Met ASME B1.20.1, ASTM A105, ASTM B633, MSS SP-83
RoHS RoHS 3 (2015/863/EU) Compliant
REACH REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin United States
USMCA Qualifying Yes
Schedule B 730799.2000
ECCN EAR99
