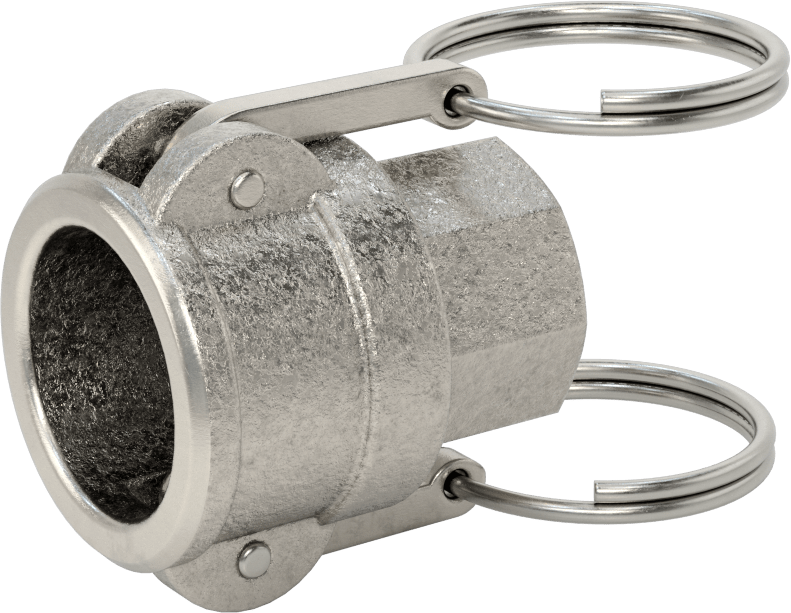

McMaster 53015K21 316 Stainless Steel Cam-and-Groove Hose Coupling, Socket with 316 Stainless Steel Levers, 3/4 Coupling Size x 3/4 NPT Female

McMaster 53015K21 316 Stainless Steel Cam-and-Groove Hose Coupling, Socket with 316 Stainless Steel Levers, 3/4 Coupling Size x 3/4 NPT Female

UPC: | Harmonization / Schedule B : 7307.29.0000

Country of Origin: United States | Shipping Weight: 1 lbs

$154.31 - $154.31
$154.31
$154.31 - $154.31
$154.31

Made of metal, these couplings have better durability than plastic cam-and-groove couplings. A complete coupling consists of a plug and a socket (both sold separately) that allow you to quickly connect and disconnect medium-to-large-diameter hose lines. To connect, insert the plug into the socket and press the levers down. The levers fit snugly into the groove on the plug's body and force the plug against the gasket to form a tight seal. Couplings are compatible with Andrews, Dixon, Ever-Tite, and PT cam-and-groove couplings. 316 stainless steel has excellent corrosion resistance.

For Use With Citric Acid, Diesel Fuel, Gasoline, Hydraulic Fluid
Shape Straight
Type Adapter
Cam-and-Groove Component Socket
Socket Locking Type Lever
Flow Control Open
Connection Style Cam-and-Groove Female × Threaded Female
Coupling Size 3/4
Socket ID 1 1/4"
Pipe Size 3/4
Thread Type NPT
Dash Size 12
Material 316 Stainless Steel
Number of Levers 2
Lever Material 304 Stainless Steel
Pull Ring Material 300 Series Stainless Steel
Gasket Material Buna-N Rubber
Maximum Pressure 250 psi @ 72° F
Temperature Range -65° to 250° F
Length 2 1/8"
Compatible With Andrews, Dixon, Ever-Tite, PT Cam-and-Groove
Specifications Met Fed. Spec. A-A-59326
Country of Origin United States
