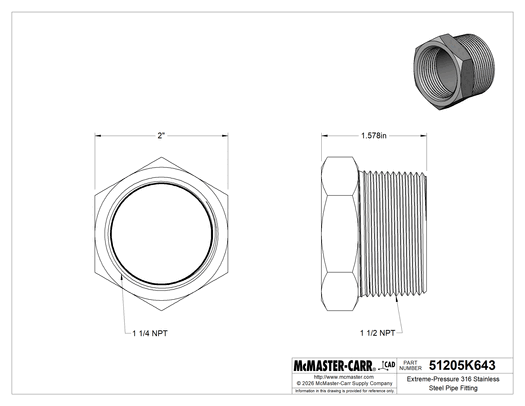

McMaster 51205K643 Extreme-Pressure 316 Stainless Steel Pipe Fitting Bushing Adapter, 1-1/2 NPT Male x 1-1/4 NPT Female

McMaster 51205K643 Extreme-Pressure 316 Stainless Steel Pipe Fitting Bushing Adapter, 1-1/2 NPT Male x 1-1/4 NPT Female

UPC: | Harmonization / Schedule B : 7307.29.0000

Country of Origin: United States | Shipping Weight: 1.3 lbs

$284.21 - $284.21
$284.21
$284.21 - $284.21
$284.21

With the strength to handle extreme pressures, these fittings can be used to connect equipment in hydraulic fluid lines.

316 stainless steel fittings have excellent corrosion resistance.

For Use With Hydraulic Fluid, Oil, Steam, Water
Shape Straight
Type Reducing Adapter, Bushing
Body Shape Hex
Material 316 Stainless Steel
Fabrication Machined
Connection Type Pipe
Connection Style Threaded
Connection NPT Male × NPT Female
Pipe Size (A) 1 1/2
Pipe Size (B) 1 1/4
Dash Size (A) 24
Dash Size (B) 20
Length 1 37/64"
Hex Width 2"
Maximum Pressure 2,400 psi @ 72° F
Maximum Steam Pressure 2,400 psi @ 200° F
Specifications Met SAE J514
Certificate Material Certificate with Traceable Lot Number
RoHS RoHS 3 (2015/863/EU) Compliant
REACH Not Compliant
DFARS Specialty Metals COTS-Exempt
Country of Origin United States
USMCA Qualifying Yes
Schedule B 730729.0000
ECCN 2B999
