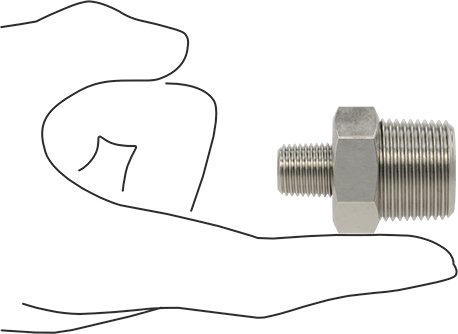

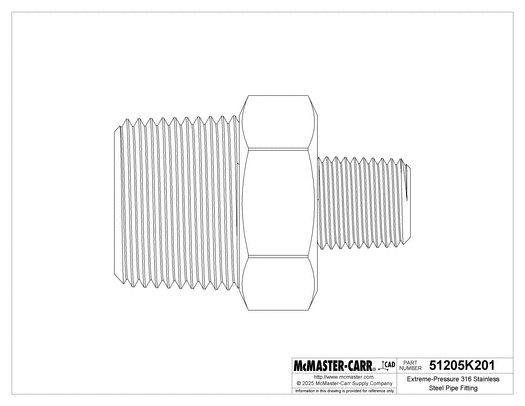

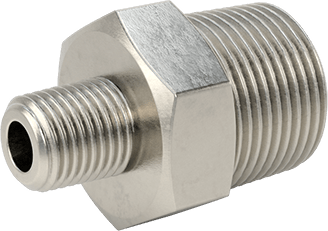

McMaster 51205K201 Extreme-Pressure 316 Stainless Steel Pipe Fitting Straight Reducer with Hex Body, 3/4 x 1/4 NPTF Male

Name: McMaster 51205K201 Extreme-Pressure 316 Stainless Steel Pipe Fitting Straight Reducer with Hex Body, 3/4 x 1/4 NPTF Male
Brand: McMaster-Carr
SKU: KV51205K201
Price: 128.14 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7307.29.0000

Country of Origin: United States | Shipping Weight: 0.3 lbs

$128.14 - $128.14

$128.14

$128.14 - $128.14

$128.14

Quantity

McMaster 51205K201 Extreme-Pressure 316 Stainless Steel Pipe Fitting Straight Reducer with Hex Body, 3/4 x 1/4 NPTF Male

With the strength to handle extreme pressures, these fittings can be used to connect equipment in hydraulic fluid lines. 316 stainless steel fittings have excellent corrosion resistance. NPTF (Dryseal) threads are compatible with NPT threads.

Shape	Straight
Type	Reducer
Body Shape	Hex
Material	316 Stainless Steel
Fabrication	Machined
Connection Type	Pipe
Connection Style	Threaded
Connection	NPTF Male
Pipe Size
(A)	3/4
(B)	1/4
Dash Size
(A)	12
(B)	04
Length	1 25/32"
Hex Width	1 1/8"
Maximum Pressure	6,600 psi @ 72° F
Maximum Steam Pressure	6,600 psi @ 300° F
For Use With	Hydraulic Fluid, Oil, Steam, Water
Specifications Met	ASTM A479
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	Not Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	United States
USMCA Qualifying	No
Schedule B	730729.0000
ECCN	2B999
