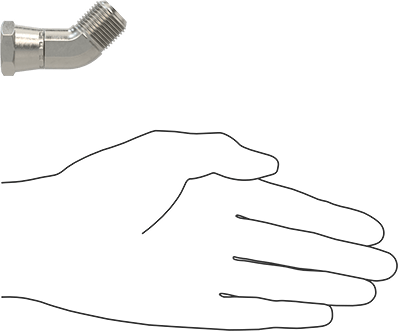

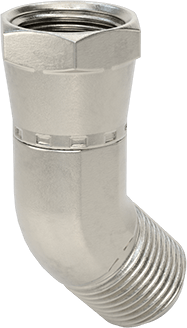

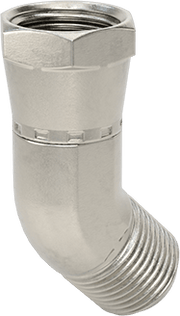

McMaster 50715K947 37 Degree Flared Fitting for Stainless Steel Tubing 45 Degree Elbow Adapter for 1/2" OD Tube x Female Tube

Name: McMaster 50715K947 37 Degree Flared Fitting for Stainless Steel Tubing 45 Degree Elbow Adapter for 1/2" OD Tube x Female Tube
Brand: McMaster-Carr
SKU: KV50715K947
Price: 167.25 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7307.22.5000

Country of Origin: South Korea | Shipping Weight: 0.32 lbs

$167.25 - $167.25

$167.25

$167.25 - $167.25

$167.25

Quantity

McMaster 50715K947 37 Degree Flared Fitting for Stainless Steel Tubing 45 Degree Elbow Adapter for 1/2" OD Tube x Female Tube

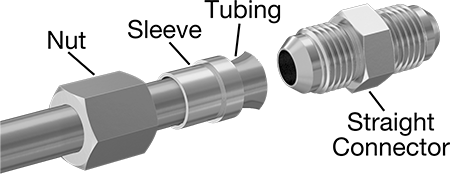

Also known as JIC (Joint Industrial Council) fittings, these provide a tight metal-to-metal seal on tubing that is flared to 37°. They withstand high pressure, so they’re often used in hydraulic applications. Made from 316 stainless steel, they resist corrosion from water and chemicals. A complete fitting requires a nut and a sleeve (ferrule) for each tube end. Nuts and sleeves are sold separately.

Fittings with female tube end have an internal flare that mates with the male tube end of another fitting.

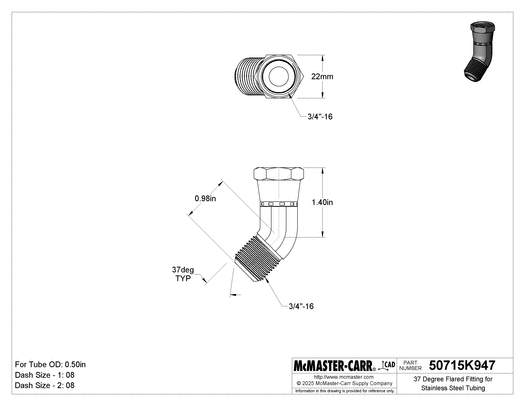

Shape	45° Elbow
Type	Adapter
For Use With	Air, Hydraulic Fluid, Isopropyl Alcohol, Natural Gas, Phosphoric Acid, Water
Male Tube Connection
Connection Style	37° Flared
Flared Connection Type	Standard
Gender	Male
Thread Type	UN/UNF (JIC)
Thread Size	3/4"-16
Dash Size	08
Female Tube Connection
Connection Style	Flared
Gender	Female
Thread Type	UN/UNF (JIC)
Thread Size	3/4"-16
Dash Size	08
For Tube OD	1/2"
Material	316 Stainless Steel
Maximum Pressure	4,500 psi @ 72° F
Temperature Range	-380° to 800° F
For Tube Material	304 Stainless Steel, 316 Stainless Steel
For Tube Specifications Met	ASTM A213, ASTM A249, ASTM A269
For Tube Fabrication	Seamless, Welded
Specifications Met	ISO 8434, SAE J514
RoHS	RoHS 3 (2015/863/EU) Compliant
REACH	REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant
DFARS	Specialty Metals COTS-Exempt
Country of Origin	South Korea
Schedule B	730722.5000
ECCN	2B999
